Hospital bed C8c

electricheight-adjustableTrendelenburg

Product overview

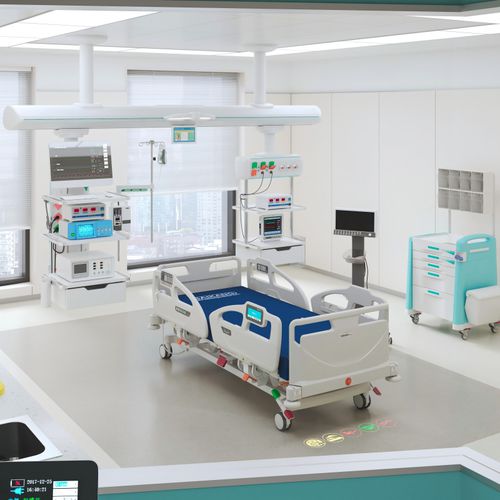

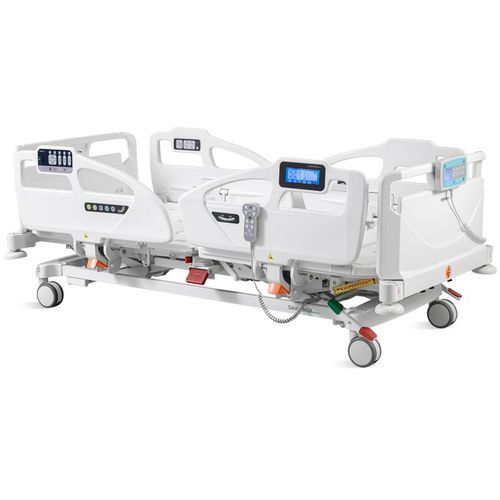

The C8c Electric ICU Bed by SAIKANG MEDICAL is a fully electric intensive care bed designed for critical care environments, providing advanced electric positioning, integrated weighing, visible bed-status warnings, rapid CPR adjustment, pressure-management features and modular accessories to support ICU workflows.

Innovation patents
- Dual retraction patented design: backrest and thigh rest retract by 67 mm and 57 mm respectively to extend the mattress surface at the pelvic area and reduce pressure concentration, helping prevent pressure ulcers and shear forces.

Key advantages for clinical use

• Electric height adjustment with one-button nursing position at 780 mm platform height for ergonomic examination.
• Back-rest (0–70°) and knee-rest (0–28°) adjustments enabling cardiac chair positioning.
• Trendelenburg and reverse Trendelenburg (0–17° each) with a patented angle indicator for clear positioning.
• Integrated weighing system with four corner sensors: accurate patient weight independent of platform position; manual recording or automatic 24-hour logging; configurable alarms (weight threshold, bed-exit).
• Instant CPR release: electric and manual CPR options; quickly removable headboards and footboards for unobstructed access.
• BLOW-moulded seamless PP siderails with integrated multi-function control and tactile feedback; bedside projection lights indicate nurse call, siderail unlocked, brake unlocked, out-of-bed detection, and lowest position.
• Effortless mobility with modern castors and optional fifth castor for tight corners; compact footprint suitable for multi-bed ICUs.

Additional built-in features

• LINAK motor standard; alternative motor brands available.
• 5" double-side castors with directional wheel function and Φ113 bumper wheels.
• PP removable C-series headboard and footboard; PP 4-piece C-series siderails.
• Head-end siderails with integrated controller and warning lights.
• Foot-end siderails with glasses holder, LCD screen and 15W wireless charger.
• PP detachable bed platform with integrated mattress retainer; backrest includes X-ray cassette holder.
• Mechanical lever on leg board for calf raise; IV pole (4 hooks) and drainage hook provisions; monkey pole holes Φ32 mm.
• Position line: 30°; bed extension: 200 mm.

Technical specifications (table)
External size (L×W): 2180 × 990 mm ±10 mm
Mattress platform: 1995 × 860 mm ±10 mm
Safe working load: 250 kg
Height adjustment: 400–850 mm ±10 mm
Back-rest: 0–70° (±10°)
Knee-rest: 0–28° (±10°)
Reverse Trendelenburg: 0–17° (±2°)
Trendelenburg: 0–17° (±2°)
Angle indicator: 0–90°
Auto-regression: 67 + 57 mm
Position line: 30°
Bed extension: 200 mm

Usage scenarios
The C8c is intended for new smart ICU ward construction, ICU modernization and replacement projects, government and public hospital tenders, multi-bed procurement programs and critical-care projects requiring rapid emergency adjustments, accurate weighing and integrated patient-safety warnings.

Features / technical specifications

• Model: C8c Electric ICU Bed
• External dimensions: 2180 × 990 mm (±10 mm)
• Mattress platform: 1995 × 860 mm (±10 mm)
• Safe working load: 250 kg
• Height range: 400–850 mm (±10 mm)
• Back-rest: 0–70° (±10°)
• Knee-rest: 0–28° (±10°)
• Trendelenburg / Reverse Trendelenburg: 0–17° (±2°)
• Angle indicator: 0–90°
• Dual auto-regression (retraction): 67 + 57 mm
• Bed extension: 200 mm
• Integrated weighing system with 4 corner sensors; automatic 24h or manual recording
• Electric and manual CPR functions; instant CPR release
• Integrated bedside controller, nurse control panel and projection lights for bed status
• PP seamless siderails, detachable head/foot boards, X-ray cassette holder, IV pole provision, wireless charger on foot end
