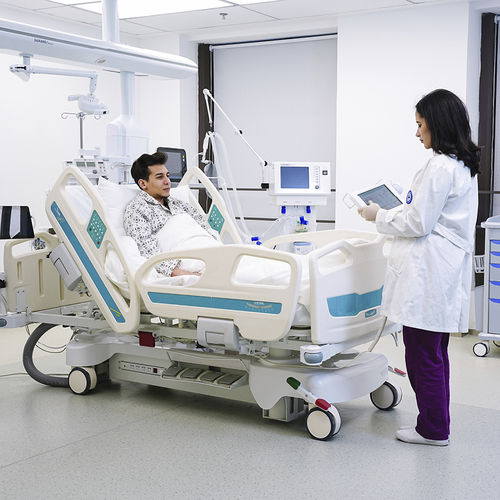

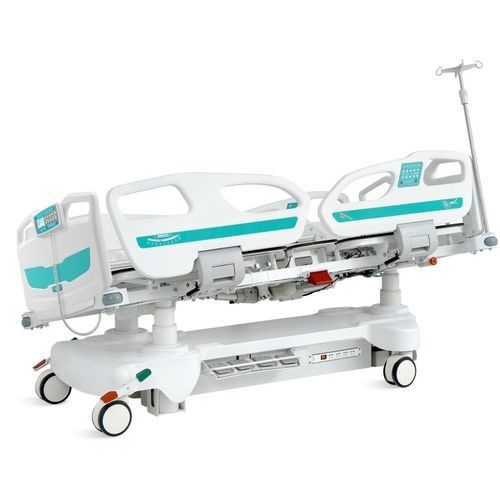

Hospital bed Z7z

electricheight-adjustableon casters

Product overview
The Z7z ICU Smart Bed is a fully electric intensive care bed engineered for critical care environments. It integrates advanced multi‑positioning, a phenolic X‑ray translucent mattress platform, integrated weighing options and rapid CPR functions to support clinical workflows and patient management.

Innovation Patents

• Dual retraction patented design: automatic auto‑regression of backrest and thighrest (75+15 mm) to extend pelvic support surface, reduce shear forces and lower pressure ulcer risk.
• Patented angle indicator and 30° position line for clinically recommended respiratory positioning.

Advantages for caregivers

• Customisable control concepts: light control panel integrated on either side and ergonomic handset for simplified operation.
• Quick emergency adjustments: easily accessible emergency lever and one‑button electric CPR to flatten the back plate.
• Electric height adjustment (530–930 mm) and multiple motor options (LINAK supported, telescopic column motor available) to optimise nursing ergonomics.
• Central locking pedal and 6" double‑safety castors with Φ85 mm bumper wheels for secure mobility.

Advantages for patient comfort

• Backrest smart stop at 30° to support respiratory function.
• Dual retraction (75+15 mm) reducing pelvic pressure concentration and shear to proactively prevent pressure ulcers.
• Multiple therapeutic positions: Trendelenburg, Reverse Trendelenburg and lateral tilt for clinical needs and mobilisation.
• Full‑body X‑ray translucent phenolic platform for imaging without patient transfer.

Key features

• Full‑coverage safety side rails (PP) with optional integrated LCD control panel.
• Phenolic resin X‑ray translucent mattress platform.
• LINAK motor support; telescopic column motor option.
• Integrated weighing system (optional), nurse control and mattress retainer (PP).
• IV pole holder provision, drainage hook, trapezoidal power plug provision.
• Night light, manual and electric CPR functions, patented angle indicator and position reference line at 30°.

Technical specifications
External size (LxW): 2127 x 1070 mm
Mattress platform: 1925 x 900 mm
Safe working load: 250 kg
Height adjustment: 530–930 mm
Back‑rest adjustment: 0–75° (±10°)
Knee‑rest adjustment: 0–35° (±10°)
Reverse Trendelenburg: 0–15° (±2°)
Trendelenburg: 0–15° (±2°)
Lateral tilt: 0–17° (±2°)
Angle indicator: 0–90°
Auto‑regression: 75+15 mm
Position line: 30°
