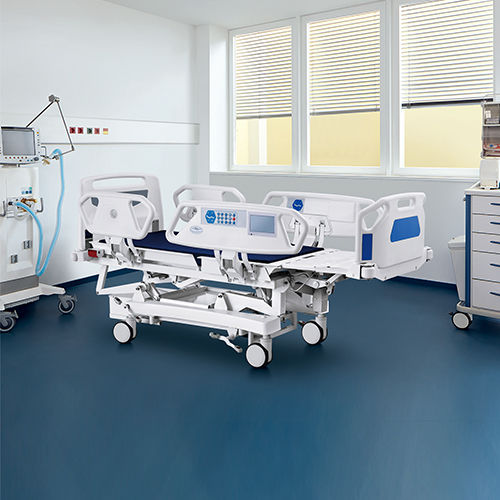

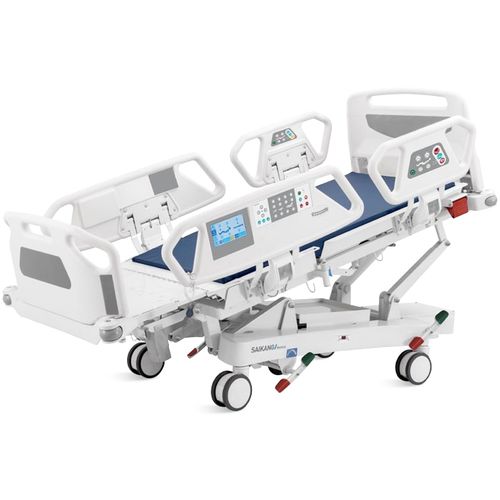

Hospital bed X9x

home carenursing homeintensive care

Product Overview

• One-button emergency stop to immediately halt all movement.
• Bed-side screen can store patient and clinician data, user manuals and weight records.
• Panasonic robotic welding ensures 360° smooth welds.
• Integrated weighing system with 4 corner sensors and 0.01 kg accuracy.
• X-ray-translucent mattress platform at the backrest for bedside imaging.

Innovation Patents
The X9x features a patented backrest auto-retraction design (auto-regression 75 mm ±10 mm). When repositioning the backrest the back plate retracts ~75 mm to reduce pressure and shear forces in the abdominal/pelvic area, extending the pelvic surface and lowering pressure ulcer risk.

Advantages For Smarter Work

• One-button nursing operating position for rapid interventions (bed platform height 780 mm for easy access).
• Cardiac-chair position adjustable with a single button to support respiratory and cardiac function.
• Electric CPR button integrated into main and nurse control panels for immediate flat-back configuration.
• Compact footprint and modern castors for manoeuvrability; optional fifth directional castor for tight corners.
• Guardrail LCD with sensor key for integrated display and control; simplified “light” control panel and ergonomic handset available.

Advantages For Patient Comfort
The retracting backrest and extendable pelvic surface relieve pressure and shear forces to improve comfort and help prevent pressure injuries. X-ray-translucent backrest reduces the need for patient transfers for bedside imaging. 7 cm mattress included as standard.

Patient Monitoring & Weighing

• Integrated weighing system using four corner sensors for improved load distribution and measurement stability.
• Weighing accuracy 0.01 kg; measurements can be recorded manually or automatically every 24 hours; onboard storage for multiple readings.

Equipment & Options (standard / optional)

• LINAK motor (standard)
• 6" Double Side Secure® castors with central locking (standard)
• ABS side rails with integrated control panel (standard)
• Removable ABS head/foot boards (one-step) (standard)
• Φ85 mm wall bumper wheel (standard)
• IV pole and IV pole provision (standard)
• Drainage hook (standard)
• 5th directional wheel pedal (standard)
• Central locking pedal (standard)
• X-ray-translucent mattress platform (backrest) (standard)
• Back-up battery (standard)
• Night light (standard)
• Trapeze socket (standard)
• 7 cm mattress (standard)
• Bed push handle for emergency transfer (standard)
• Emergency stop button (standard)
• Weighing system (standard)
• Guardrail LCD screen with sensor key (standard)
• Manual CPR and Electric CPR (standard)
• Monkey pole (optional)

Technical Specifications (key parameters)
External size (L × W): (2120-2320) × 1010 mm
Mattress platform: (1750 + 200) × 830 mm
Safe working load: 250 kg
Height adjustment: 550 - 950 mm
Back-rest adjustment: 0 - 75° (±10°)
Knee-rest adjustment: 0 - 20° (±10°)
Reverse Trendelenburg: 0 - 18° (±2°)
Trendelenburg: 0 - 18° (±2°)
Leg extension board adjustment: 0 - 68° (±2°)
Angle indicator: 0 - 15°
Backrest regression (auto-retraction): 75 mm

Notes on Functionality
Auto-regression 75 mm ±10 mm reduces pressure and shear during repositioning. The bed includes features to simplify nursing tasks (one-button positions, nurse lock, removable head/foot boards) and supports ICU workflows (weighing, bedside imaging, electric/manual CPR, integrated controls).
