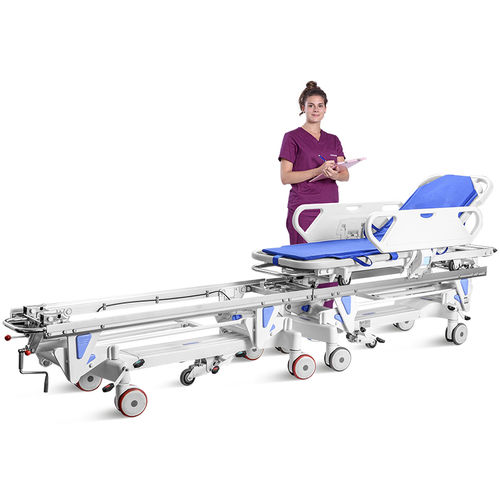

Patient transfer stretcher trolley SKB041

transfermanualwith adjustable backrest

Product overview
SKB041 patient transfer trolley is designed to enable safe, efficient patient transfers between operating rooms, ICUs and recovery units. The trolley supports secure docking with operating room tables, smooth mobility and infection-control compatible surfaces to reduce cross-contamination risk.

Highlights

• Main frame: Baosteel with Panasonic robotic 360° welding for consistent weld quality.
• Plastic parts: Medical-grade plastics sterilizable up to 100°C; tensile strength up to 30 MPa.
• Surface finish: 11-step epoxy painting with antibacterial treatment; paint thickness 0.12 mm; tested for impact resistance.
• Crank protection: Metal dust cover for crank system for improved durability.
• Load-bearing structure: Reinforced tubing and heavy-duty bearings.
• Safety: Auto-locking stretcher mechanism when engaged to prevent accidental movement.
• Mobility: Engageable center wheel for precise directional control in busy environments.
• Docking capability: Designed to dock with operating room tables to streamline transfers and reduce infection risk.
• Accessories: Stainless steel handle and waterproof mattress supplied with two safety belts.

Parameters

• Model: SKB041
• Brand: SAIKANG MEDICAL
• Overall length: 190.5 cm
• Width: 71 cm
• Adjustable height range: 63 cm – 96 cm
• Fowler (backrest) range: 0° – 90°
• Knee articulation: 0° – 40°
• Trendelenburg / Reverse Trendelenburg: 20° / 30°

Technical specifications

• Main frame material: Baosteel.
• Welding: Panasonic robotic welding, full 360° welds.
• Surface finish: 11-process epoxy painting with antibacterial coating; paint thickness 0.12 mm.
• Plastic components: Sterilizable at 100°C; tensile strength up to 30 MPa.
• Crank protection: Metal dust cover for enhanced longevity.
• Bearings & structure: Heavy-duty bearings and reinforced tubing for load-bearing reliability.
• Safety features: Auto-lock stretcher mechanism and central locking wheels.
• Wheels: Engageable center wheel for directional control.
• Handle: Stainless steel.
• Mattress: Waterproof mattress with two safety belts.
• Cleaning & standards: Designed for easy cleaning and sterilization; engineered in accordance with medical device safety principles (e.g., IEC 60601 compatibility guidance).
