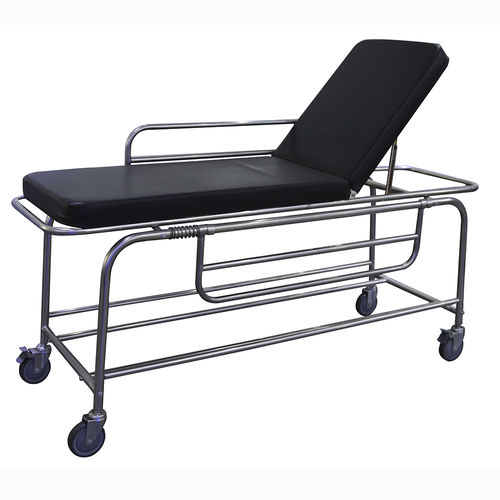

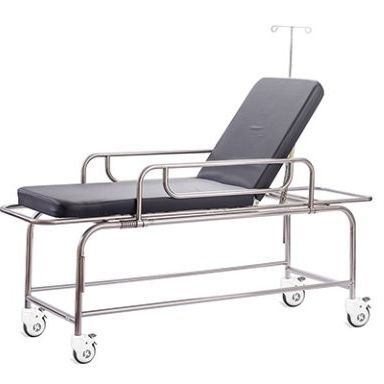

Patient transfer stretcher trolley SKB037(B)

emergencytransfermanual

Overview
SKB037(B) patient trolley features a stainless steel frame, adjustable backrest (0–75°), detachable structure, 5-inch medical silent castors and a high-density mattress suitable for hospital patient transport and ward transfers.

Highlights

• Cover: Flame-retardant; resistant to yellowing and mildew; flexible; wear resistance tested to 100,000 cycles.
• Mattress: Flame-retardant high-density foam, 4 cm thickness, density 30 kg/m³.
• Frame: Baosteel stainless steel; Panasonic robotic welding for 360° continuous smooth welds.
• Bearing / Bedstead: Main frame in high-quality stainless steel with mirror polishing; load capacity 200 kg.
• Side rail: Foldable.
• Casters: 5-inch silent castors with universal brake; easy mobility and reliable performance.
• IV pole: Adjustable stainless steel IV pole (outer Φ19×1 mm, inner Φ16×1 mm), telescoping 750 mm, load capacity 15 kg.
• Structure: Detachable for transport and handling.
• Accessories: Debris basket and oxygen bottle rack.

Technical parameters
Full size: 1960×600×750 mm
Backrest: 0–75° (page summary also references 0–70°)

Specifications

• Brand: SAIKANG MEDICAL
• Model: SKB037(B)
• Full size (L×W×H): 1960×600×750 mm
• Backrest adjustment: 0–75° (page summary references 0–70°)
• Frame material: Stainless steel (Baosteel); mirror surface polishing
• Load capacity: 200 kg
• Mattress: High-density foam, 4 cm thickness, density 30 kg/m³, flame-retardant
• Cover: Flame-retardant, yellowing-resistant, mildew-resistant, bend-resistant, high wear resistance
• Casters: 5-inch silent castors with universal brake
• Side rails: Foldable
• IV pole: Adjustable stainless steel, telescoping 750 mm, load capacity 15 kg
• Structure: Detachable for transport
• Accessories: Debris basket / oxygen bottle rack
