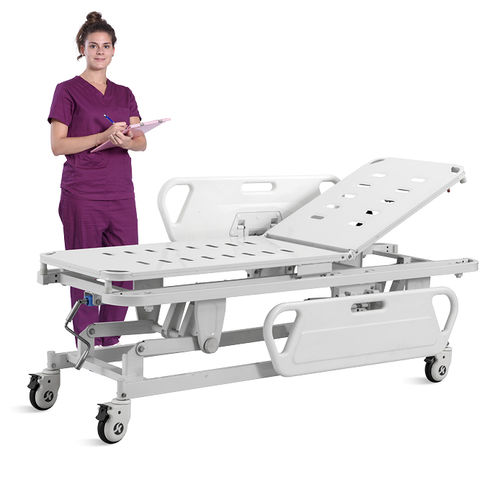

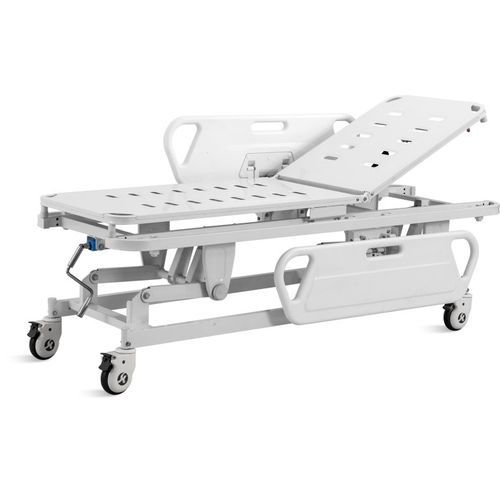

Transport stretcher trolley SKB038-2

patient transferrecoverymanual

Overview
SKB038-2 patient trolley designed for patient transfer, transportation and clinical care applications. Construction combines powder-coated steel frame, ABS tuck-away side rails and durable medical castors to facilitate safe transfer and handling.

Highlights

• Guardrail – Virgin ABS tuck-away side rail with buffer; shaped for ergonomic grip to assist patient standing and safe containment during transport.
• Handle crank – Steel hanging crank designed for repeated use; folds under the bed when not in use to save space.
• Bed surface – Powder-coated steel surface with smooth finish and no welding scars for easy cleaning.
• Bed frame – Powder-coated steel base providing stable, corrosion-resistant support.
• Caster – 5" TPR tires resistant to wear with anti-winding hard shell, unitary forming without bolts; tested under dynamic load: 120 kg over 30 km and 500 obstacle passes.
• Gas spring – Backrest adjustable 0–75° with gas-spring control for smooth, controlled positioning.
• Standard accessories – Provision for IV pole and supplied mattress (see technical configuration).

Technical parameters (table)
External size (L x W): 1900 x 700 mm
Table height adjustment: 620–900 mm
Back plate adjustment: 0–75°

Technical specifications

• Model designation: SKB038-2
• Crank system: 1 set
• Back plate gas spring: 1 set (backrest 0–75°)
• Plastic side guardrail: 1 set (virgin ABS tuck-away type)
• 5" covered castors: 4 pcs (TPR tire, anti-winding hard shell)
• IV pole: 1 set
• IV pole provision: 4 pcs
• Mattress: 1 pc
• External dimensions (L x W): 1900 x 700 mm
• Height adjustment range: 620–900 mm
• Intended use: patient transfer, transportation and clinical care
