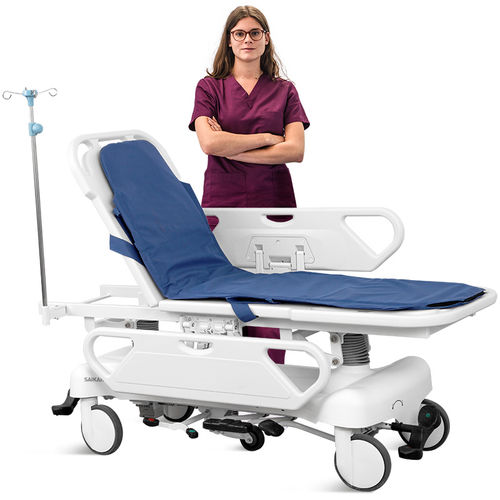

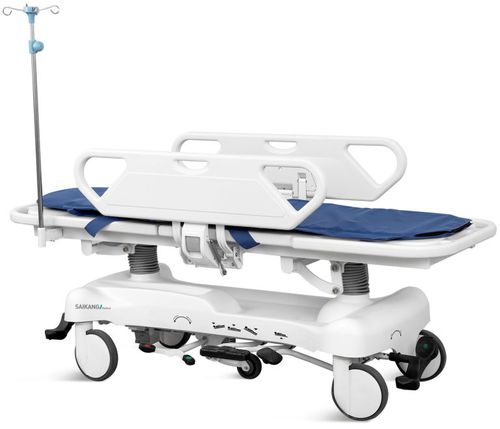

Transport stretcher trolley SKB041-2

emergencypatient transferhydraulic

Highlights

• Metal: Baosteel body with Panasonic robotic welding for continuous smooth 360° welds.
• Plastic: Environmental-grade plastic components resistant to sterilization at 100°C; tensile strength up to 30 MPa.
• Steel & finish: 11-stage epoxy coating; ASTM-tested antibacterial finish; paint thickness ≈0.12 mm; gloss 60°; impact resistance up to 50 kg.
• Brake: Brake system validated after 10,000 continuous operations.
• Hydraulics: Dual USA hydraulic pumps for height adjustment and Trendelenburg/reverse Trendelenburg tilt control.
• Directional control: Engagable fifth directional wheel to aid navigation in busy environments.
• Elevation & descent: Hydraulic treadle for lifting; pedal-operated staged lowering of sections to control head/leg positions and steady descent.
• Castors: Four central-control double-side castors (8"), TPR tires wear-resistant to ~30 km; simultaneous locking via step pedals on both sides; anti-winding hard-shell design.
• Mattress: Waterproof transfer mattress with two restraints; 2 cm Oxford cloth mattress included.

Technical parameters (table)
External size (L×W): 1910×640 mm (±10 mm)
Table height adjustment: 650–960 mm (±10 mm)
Back plate adjustment: 0–75° (±10°)
Reverse Trendelenburg: 0–15° (±2°)
Trendelenburg: 0–15° (±2°)
Static load capacity: 250 kg
Dynamic load capacity: 135 kg

Technical configuration

• 8-inch central control castors: 4 pcs
• Directional control wheel (fifth castor): 1 pc
• Hydraulic pumps: 2 pcs
• Stainless steel infusion (IV) pole: 1 pc
• IV pole previsions/holes: 2 pcs
• PP guardrails (side rails): 2 pcs
• Back gas spring: 1 pc
• Foot/lock pedals: 2 sets
• Central control brakes: 2 pcs
• Bottom plastic cover: 1 pc
• 2 cm Oxford cloth mattress (transfer mattress): 1 pc

Characteristics / technical specifications

• Model: SKB041-2
• Usage: Patient transport and in-hospital transfer stretcher (emergency and internal transfers)
• Dimensions (L×W): 1910×640 mm (±10 mm)
• Height range: 650–960 mm (±10 mm)
• Back plate angle: 0–75° (±10°)
• Trendelenburg / Reverse Trendelenburg: 0–15° (±2°)
• Static load capacity: 250 kg
• Dynamic load capacity: 135 kg
• Dual hydraulic pumps for height and tilt adjustments
• Central-control castors with step-pedal locking and one directional castor for enhanced maneuverability
• Included accessories: stainless steel IV pole, PP guardrails, back gas spring, foot pedals, bottom plastic cover, 2 cm Oxford cloth mattress
