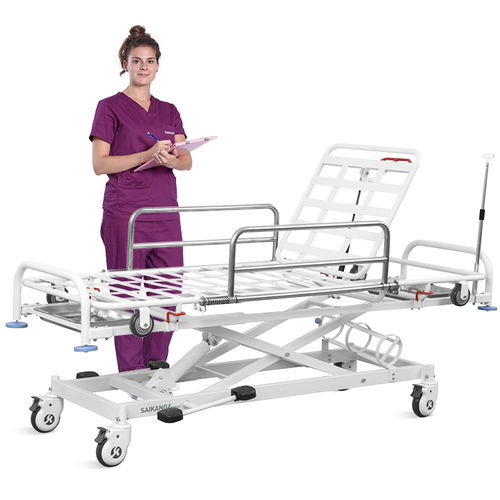

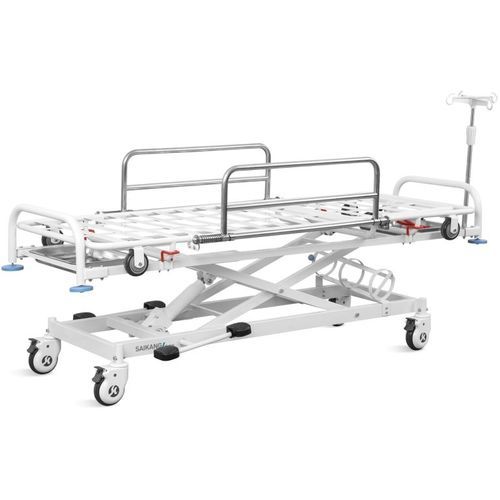

Transport stretcher trolley SKB041-3S

emergencypatient transferhydraulic

Overview
Detachable stretcher and trolley design; hydraulic height adjustment; stainless steel side rails; oxygen cylinder holder; suitable for hospital patient transfer and emergency transportation.

Highlights

• Metal material: Baosteel from Fortune Global 500; Panasonic robotic welding for 360° full smooth welding.
• Painting: 11-process epoxy painting; ASTM-tested antibacterial; paint thickness 0.12 mm; brightness 60°; painting resists 50 kg impact.
• Multifunctional patient cart: Multi-functional trolley separable into two parts — stretcher and trolley. The stretcher has four wheels and can be used/moved individually.
• Bumper wheel: Detachable bumper wheel to maximize protection of bed and patient during transportation.
• Guardrail: Foldable stainless steel guardrail, rust-resistant and easy to clean.
• Hydraulic pumps: American brand hydraulic pump for reliable height adjustment support.
• Casters: Four covered 5" diameter casters, all with brakes.
• IV pole: Stainless steel IV pole, bearing capacity 15 kg.
• Oxygen bottle holder: Load capacity 15 kg.
• Stainless steel basin: Equipped with stainless steel sewage/debris basin and multiple accessories.

Included accessories / Configuration

• Hydraulic Pump: 1 pc
• Air Spring: 1 pc
• Stainless steel guardrail: 1 set
• Push handle: 1 set
• Wall bumper wheel: 4 pcs
• Foot pedal: 2 pcs
• 5" castors with brake: 4 pcs
• Oxygen cylinder rack: 1 pc
• Debris basin: 1 pc
• IV pole: 1 pc
• Mattress (thickness 60 mm): 1 pc

Technical parameters
External size (L x W): 2150 x 790 mm
Table height adjustment: 635 - 895 mm
Back plate adjustment: 0 - 60° (±10°)

Technical specifications

• Model: SKB041-3S
• External dimensions (LxW): 2150 x 790 mm
• Height adjustment range: 635 - 895 mm
• Back plate adjustment range: 0 - 60° (±10°)
• Frame material: Baosteel (full smooth robotic welding)
• Surface treatment: 11-process epoxy painting; paint thickness 0.12 mm; ASTM antibacterial testing; brightness 60°; impact resistance up to 50 kg
• Hydraulic pump: 1 pc (American brand)
• Air spring: 1 pc
• Guardrail: Foldable stainless steel (1 set)
• Casters: 4 covered 5" casters with brakes
• Bumper wheels: 4 pcs (detachable)
• Foot pedals: 2 pcs
• Oxygen cylinder rack / holder: 1 pc (load capacity 15 kg)
• IV pole: Stainless steel, bearing 15 kg
• Debris / sewage basin: Stainless steel, included
• Mattress: 60 mm thickness (1 pc)
• Configuration accessories: push handle (1 set), mattress (1 pc)
