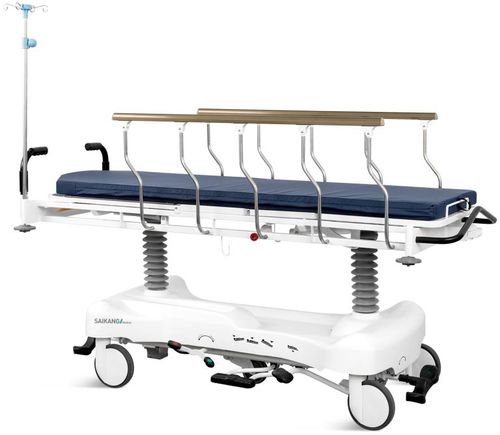

Transport stretcher trolley SKB041-3

patient transfermedical imagingmanual

Overview
SAIKANG MEDICAL SKB041-3 patient transportation trolley designed for safe and efficient intra-hospital transfer. Stable frame, manoeuvrable castors and independently adjustable sections provide controlled patient positioning and support back X‑ray imaging.

Highlights
Metal material
Primary steel sourced from Baosteel (Fortune Global 500). Panasonic robotic welding delivers continuous 360° welded joints.

Plastic
Environmentally certified plastic, sterilizable at 100°C, tensile strength up to 30 MPa.

Steels | Painting
Epoxy coating applied in an 11-step process; ASTM-tested antibacterial finish. Paint thickness 0.12 mm, gloss 60°, impact resistance up to 50 kg.

Brake
Brake spring maintains function after 10,000 consecutive actuations.

Hydraulic pumps
Height adjustment and Trendelenburg/reverse Trendelenburg operated via two US hydraulic pumps.

Center wheel
Engageable center wheel for improved directional control in confined or busy areas.

Rising
Hydraulic treadle for vertical lift.

Falling
1) Leg section lowers to raise the head. 2) Back section lowers to raise the leg section. 3) Step on the central pedal to lower the bed base smoothly.

Castors
Four 8-inch double-side castors with simultaneous locking via side step pedals. TPR tyres resist wear after 30 km; anti-winding hard shell; integrated construction without bolts.

Mattress
6 cm waterproof PU mattress suitable for patient transfer.

Technical parameters
External size (L×W): 2120 × 840 mm (±10 mm)
Table height adjustment: 550–860 mm (±10 mm)
Backplate adjustment: 0–85° (±5°)
Knee-rest adjustment: 0–40° (±5°)
Reverse Trendelenburg: 0–15° (±2°)
Trendelenburg: 0–15° (±2°)
Static load capacity: 250 kg
Dynamic load capacity: 135 kg

Technical configuration

• Model: SKB041-3
• 8-inch central control castors: 4 pcs (plus 1 fifth castor)
• Hydraulic pumps: 2 pcs (USA)
• 5-speed foldable guardrails: 1 pair
• Stainless steel infusion pole: 1 pc; infusion stand holes: 4 pcs
• Back lifting gas springs: 2 pcs
• Leg lifting: crank handle (1 pc)
• Anti-collision wheels: 4 pcs
• Foot pedals: 2 sets
• Central control brakes: 2 pcs
• Bottom plastic cover: 1 pc
• 6 cm PU mattress: 1 pc
• Bed boards: back bed board made of HPL for half-body X‑ray imaging with back X‑ray clamp; other bed boards plastic-steel
