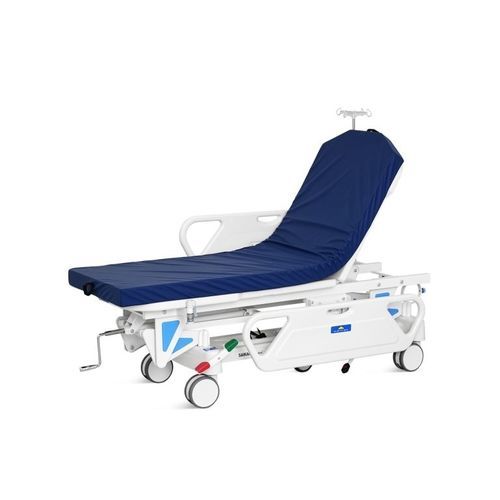

Transport stretcher trolley SKB041-1

patient transfermanualpneumatic

Overview
SAIKANG MEDICAL SKB041-1 patient transportation trolley designed for safe and efficient in-hospital patient transfer. Features a high-quality PP platform, adjustable backrest up to 70°, central locking castors and an engageable directional wheel for controlled maneuvering in clinical environments.

Highlights

• Metal material: Baosteel frame with Panasonic robotic welding providing 360° continuous welds.
• Frame & chassis: 30×50 mm square tube construction for increased strength and stability.
• Coating: 11-step epoxy coating with ASTM-tested antibacterial finish; paint thickness 0.12 mm, gloss 60°, impact resistant up to 50 kg.
• Platform & guardrail: High-quality PP material, sterilizable up to 100°C, tensile strength up to 30 MPa.
• Back lift: Adjustable up to 70° to improve patient positioning and comfort.
• Double side castors: Four double 6-inch castors with simultaneous central lock via dual side pedals; TPR tires, anti-winding design, single-piece formation.
• Directional center wheel: Engageable directional wheel for improved directional control during transport.
• IV pole: Telescopic IV pole combining plastic and stainless steel, 4-hook stainless steel (Φ16–19); provisions at head and foot.
• Oxygen bottle holder: Two positions for 2L bottles (Φ105 mm); one under headboard, one on chassis with belt.
• Accessories included/support: Central locking brake pedals (2), directional pedals (2), 6 cm PU mattress, oxygen bottle holder, IV pole set.

Technical parameters
External size (L×W): 1900 × 640 mm
Height adjustment range: 550–850 mm
Back plate adjustment: 0–70° (±10°)

Technical configuration
Crank system: 1 set
Back plate airspring: 1 set
ABS side guardrail: 1 set
6" castors with central locking: 4 pcs
Directional wheel: 1 pc
IV pole prevision: 2 pcs
IV pole: 1 set
Oxygen bottle holder: 1 pc
Central locking brake pedal: 2 pcs
6 cm PU mattress: 1 pc
Directional pedal: 2 pcs

Specifications

• Model: SKB041-1
• External dimensions (L×W): 1900 × 640 mm
• Height adjustment range: 550–850 mm
• Back plate adjustment range: 0–70° (±10°)
• Back lift mechanism: airspring (1 set)
• Crank system: 1 set
• Bed frame & chassis: 30×50 mm square tube (Baosteel)
• Welding: Panasonic robotic 360° continuous welding
• Platform & guardrail material: High-quality PP (sterilizable at 100°C; tensile up to 30 MPa)
• Coating: 11-step epoxy, ASTM antibacterial, paint thickness 0.12 mm, gloss 60°, impact resistant
• Castors: Four double 6" castors with central locking (TPR tires, anti-winding design)
• Directional wheel: 1 pc (engageable)
• IV pole: 1 set (plastic + stainless steel, Φ16–19) with 2 previsions
• Oxygen bottle holder: 1 pc (fits 2L bottles, Φ105 mm)
• Mattress: 6 cm PU mattress included (1 pc)
• Pedals: Central locking brake pedals (2 pcs) and directional pedals (2 pcs)
