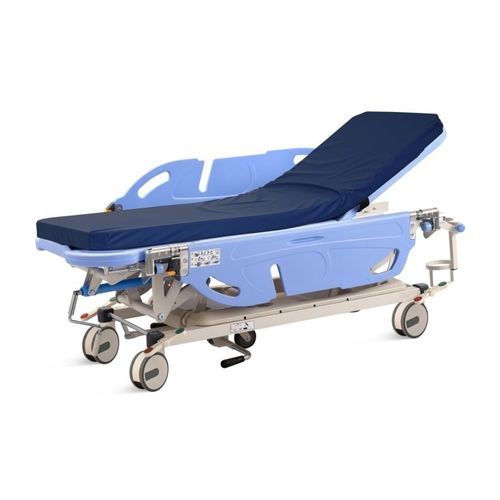

Patient transfer stretcher trolley SKB041-6

transfermanualwith adjustable backrest

Overview
SKB041-6 patient transportation trolley designed for ICU, emergency and radiology transport. Equipped with crank lifting, back-rest air spring, X-ray transparent backrest and cassette holder to facilitate imaging during transfer. Central locking 6-inch castors and an engagable central wheel device improve maneuverability and directional control in busy clinical environments. Adjustable oxygen cylinder rack, stainless-steel IV pole and a 6 cm PU mattress are included.

Highlights

• Guardrail: Side-rail can be fixed at horizontal level to support the patient arm for IV administration or treatment.
• One-direction moving: Side-rail can be used as a transfer board to create a near-zero gap for easier patient transfer.
• Degree indicator: Scale on guardrail shows backrest angle.
• T-shaped gap: Allows tubes to pass through the side-rail for improved fluid management.
• Handle crank: Stainless steel crank handle with plastic grip for reliability.
• Center wheel: Engagable central wheel device for enhanced direction control.
• Casters: 6-inch central locking castors (4 pcs) with central locking brake pedal.
• Oxygen cylinder rack: Adjustable vertical holder, load capacity 15 kg.
• Mattress: 6 cm PU mattress supplied.
• I.V. pole: Full stainless-steel IV pole, load capacity 15 kg; 4 IV pole previsions; 1 IV pole included.

Technical parameters (table)
External size (L x W): 1930 x 663 mm (±10 mm)
Table height adjustment: 510 - 850 mm (±10 mm)
Backplate adjustment: 0 - 70° (±5°)
Static load: 170 kg

Technical configuration (table)

• Back Rest Air Spring: 1 pc
• Lifting Screw Rod / Crank System: 1 set
• PP material bed boards: 2 pcs
• PP material guardrails with angle indicator: 2 pcs
• IV pole previsions: 4 pcs
• IV pole: 1 pc
• Fifth wheel device for direction control: 1 set
• 6-inch central control wheels: 4 pcs
• Central locking brake pedal: 4 pcs
• Bottom plastic cover: 1 pc
• Oxygen cylinder holder: 1 pc
• 6 cm PU mattress: 1 pc

Usage & suitability
Designed for intra-hospital patient transport in ICUs, emergency departments and radiology units. X-ray transparent backrest and cassette holder allow imaging procedures during transfer without moving the patient off the trolley.
