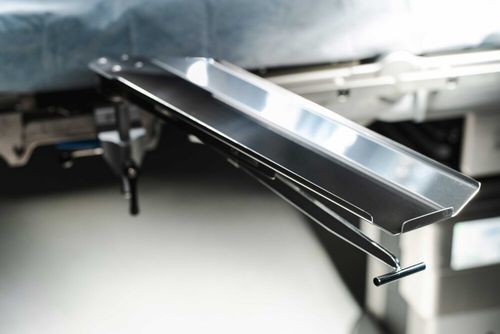

Operating table armrest 10-380-S30

stainless steeladjustable

This armboard is a widely used surgical arm support, especially in anesthesia settings, featuring Reison Technology ball joint for effortless single-hand operation and quick adjustments. It is designed with an extra wide 30 mm spacer to fit operating tables with wide mattresses and has adjustable height to accommodate different mattress thicknesses.

Key features

• Reison Technology ball joint enabling single-hand operation and easy angle adjustments
• Extra wide 30 mm spacer for use with wide mattresses and tighter mattress-to-armboard gaps
• Adjustable height to accommodate various mattress thicknesses
• Clamp includes hook-on function for quick attachment to side rails

Accessories & recommended items

• Clamp included: A standard armboard clamp with hook-on function is included (part no. 10019, 10019-US or 10019-UK depending on version)
• Accessory rail compatibility (available clamps): EU accessory rail (25×10 mm); US accessory rail (1⅛” x ⅜”); UK accessory rail (1¼” x ¼”)
• Recommended cushions for curved plates (not included):
  • 10-381 Plane moulded cushion
  • 10-381-H Plane comfort cushion
  • 10-382 Curved moulded cushion
  • 10-382-H Curved comfort cushion
  • 10-382-HT Curved comfort cushion, high
• Material (cushions): Polyurethane, Mfoam, Slow recovery
• Recommended straps (not included):
  • 10-383 Strap for Armboard
  • 10-383-L Strap for Armboard, long
• Material (straps): Polyester

Technical specifications

• Part no: 10-380-S30
• Length: 670 mm
• Width: 180 mm
• Height: 220 mm
• Weight: 4.3 kg
• Safe Working Load: 12 kg
• Material: Stainless steel, Aluminum
