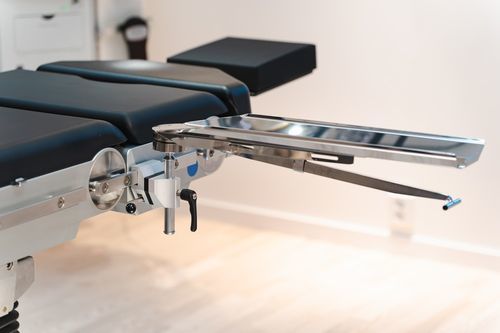

Operating table armrest 10-380

positioningpolyesterstainless steel

This armboard is designed for anesthesia use and features Reison's ball joint for effortless single-hand operation and fast ergonomic adjustments. The height is adjustable to accommodate various mattress thicknesses and the clamp has a hook-on function with a locking lever for quick and secure assembly.

Key features

• Reison Technology ball joint enabling single-hand operation for easy, ergonomic adjustments
• Height adjustable to fit different mattress thicknesses
• Clamp with hook-on function and locking lever for secure attachment to side rail
• Includes standard armboard clamp (part no. 10019, 10019-US or 10019-UK depending on version)
• Reference for beach chair position: Armboard 10-387 with Reison rotatable clamp 10-307

Accessories / Recommended items

• Clamp included: standard armboard clamp with hook-on function (part no. 10019, 10019-US or 10019-UK)
• Clamps available for different accessory rails: EU accessory rail (25×10 mm), US accessory rail (1⅛” x ⅜”), UK accessory rail (1¼” x ¼”)
• Recommended cushions for curved plates (not included): 10-381 Plane moulded cushion; 10-381-H Plane comfort cushion; 10-382 Curved moulded cushion; 10-382-H Curved comfort cushion; 10-382-HT Curved comfort cushion, high — Material: Polyurethane, Mfoam, Slow recovery
• Recommended straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long — Material: Polyester

Technical specifications

• Part Number EU: 10-380
• Part Number UK: 10-380-UK
• Part Number US: 10-380-US
• Length: 640 mm
• Width: 160 mm
• Height: 230 mm
• Height adjustment: 90 - 175 mm
• Weight: 4,3 kg
• Safe Working Load (SWL): 12 kg
• Material: Stainless steel, Aluminum
