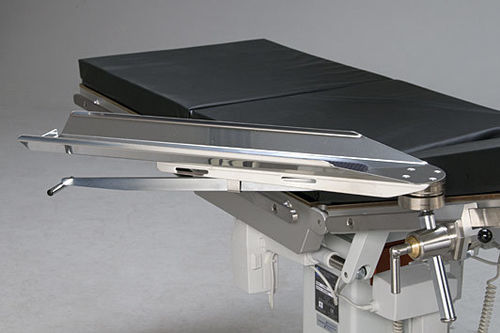

Operating table armrest 10-387

positioningstainless steel

The surgical armboard 10-387 with rotatable clamp and curved plate is designed for anesthesia and professional surgical environments. It features Reison Technology's single-hand operated ball joint for smooth, ergonomic positioning and a rotatable clamp with hook-on function for quick assembly. The armboard attaches to side rails using a locking lever and provides adjustable height to suit different mattress thicknesses.

Accessories

• Clamp included: Rotatable armboard clamp with hook-on function, part no. 10-307-P (variants: 10-307-P, 10-307-US-P or 10-307-UK-P depending on version).
• Clamp compatibility options: EU accessory rail (25×10 mm), US accessory rail (1 1/8 x 3/8 in), UK accessory rail (1 1/4 x 1/4 in).
• Recommended cushions for curved plates (not included): 10-381 Plane moulded cushion; 10-381-H Plane comfort cushion; 10-382 Curved moulded cushion; 10-382-H Curved comfort cushion; 10-382-HT Curved comfort cushion, high. Materials: Polyurethane, Mfoam, slow recovery foam.
• Recommended straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long. Material: Polyester.

Characteristics / Specifications

• Part Number EU: 10-387
• Part Number UK: 10-387-UK
• Part Number US: 10-387-US
• Length: 640 mm
• Width: 160 mm
• Height: 240 mm
• Height adjustment: 85-180 mm
• Weight: 4.3 kg
• Material: Stainless steel, Aluminum, Steel
