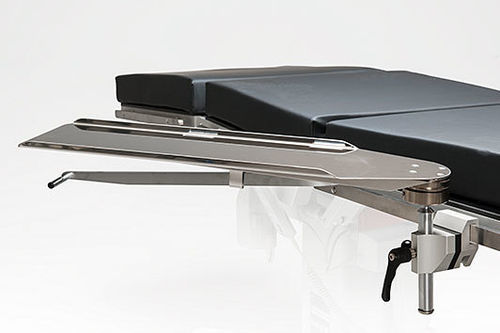

Hospital bed armrest 10-380-M10

height-adjustablestainless steel

This armboard is designed for professional medical use, particularly in anesthesia applications. It features single-hand ergonomic adjustments via the Reison Technology ball joint, height adjustment for compatibility with various mattress thicknesses, and a hook-on clamp with locking lever for fast, secure fixation to bed side rails.

Features

• Reison Technology ball joint for smooth single-hand operation
• Height adjustable to accommodate different mattress thicknesses
• Hook-on clamp with locking lever for rapid and secure attachment to side rails
• Optional spacer available (alternative 30 mm spacer can be ordered)

Accessories

• Clamp included: standard armboard clamp, 10 mm spacer with hook-on function (part no. 10019)
• Recommended cushions (not included): 10-181 Flat, medisoft comfort cushion; 10-182 U-shaped, medisoft comfort cushion; Material: Mfoam, slow recovery
• Recommended straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long; Material: Polyester

Technical specifications

• Part Number EU: 10-380-M10
• Length: 610 mm
• Width: 180 mm
• Height: 220 mm
• Weight: 4.3 kg
• SWL (Safe Working Load): 12 kg
• Material: Stainless steel, Aluminum
