Operating table armrest 10-380-L

stainless steelheight-adjustablefoam

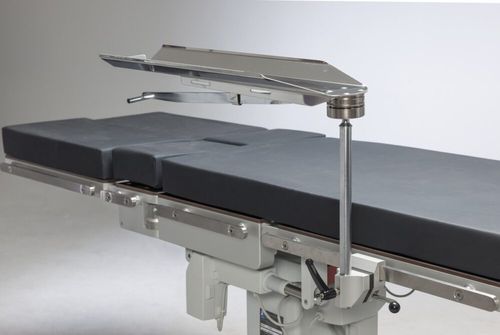

This armboard is designed for operating rooms and anesthesia applications. It features the Reison Technology ball joint for smooth single-hand operation, a long post compatible with extra-thick operating table mattresses, adjustable height for improved adaptability and patient comfort, and a hook-on clamp for quick mounting to side rails.

Features

• Reison Technology ball joint enabling smooth single-hand operation
• Long post for use with extra-thick operating table mattresses
• Hook-on clamp for quick assembly and a locking lever for secure attachment to the side rail
• Recommended alternative for beach chair position: Armboard 10-387 with Reison rotatable clamp 10-307

Accessories

• Clamp included: Standard armboard clamp with hook-on function (part no. 10019, 10019-US or 10019-UK depending on version)
• Clamp rails available: EU accessory rail (25×10 mm); US accessory rail (1⅛" x ⅜"); UK accessory rail (1¼" x ¼")
• Recommended cushions for curved plates (not included): 10-381 Plane moulded cushion; 10-381-H Plane comfort cushion; 10-382 Curved moulded cushion; 10-382-H Curved comfort cushion; 10-382-HT Curved comfort cushion, high; 10-382-K Curved comfort cushion, short — Material: Polyurethane, Mfoam, Slow recovery
• Recommended straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long — Material: Polyester

Technical specifications

• Part Number EU: 10-380-L
• Part Number UK: 10-380-L-UK
• Part Number US: 10-380-L-US
• Length: 640 mm
• Width: 160 mm
• Height: 400 mm
• Height adjustment: 90-345 mm
• Weight: 4.7 kg
• SWL (Safe Working Load): 12 kg
• Material: Stainless steel, Aluminum
