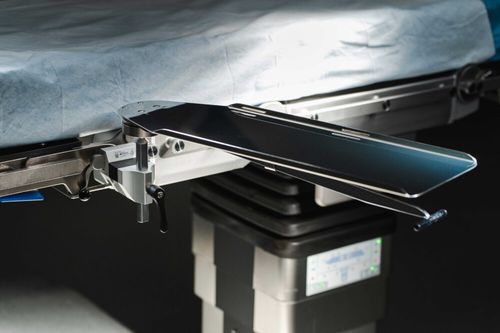

Operating table armrest 10-380-M

height-adjustableadjustablefoam

Overview
This armboard is designed for anesthesia use and features the Reison Technology ball joint for smooth single‑hand operation, adjustable height to accommodate different mattress thicknesses, and an extra-wide 30 mm spacer suitable for operating tables with wide mattresses.

Accessories

• Clamp included: Armboard clamp, 30 mm spacer with hook-on function (part no. 10019-S30, 10019-S30-US or 10019-S30-UK depending on version)
• Clamp versions available for different accessory rails: EU accessory rail (25×10 mm), US accessory rail (1⅛” x ⅜”), UK accessory rail (1¼” x ¼”)
• Recommended cushions (not included): 10-181 Flat medisoft comfort cushion; 10-182 U-shaped medisoft comfort cushion — Material: Mfoam, slow recovery
• Recommended straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long — Material: Polyester

Technical specifications

• Part Number EU: 10-380-M
• Part Number UK: 10-380-M-UK
• Part Number US: 10-380-M-US
• Length: 660 mm
• Width: 160 mm
• Height: 210 mm
• Height adjustment: 60–145 mm
• Weight: 4.3 kg
• SWL (Safe Working Load): 12 kg
• Material: Stainless steel, Aluminum
