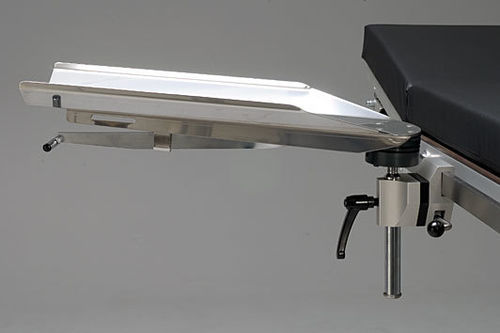

Operating table armrest 10-380-K

positioningadjustablestainless steel

This surgical armboard is designed for anesthesia settings and enables ergonomic single-hand operation via the Reison Technology ball joint. It is the short-length version of part no. 10-380 and is quick to assemble while accommodating different mattress thicknesses.

Key features

• Reison Technology ball joint for smooth single-hand operation and improved ergonomics
• Short-length armboard (shorter variant of part no. 10-380)
• Hook-on clamp for rapid attachment to the side rail
• Height adjustable to fit various mattress thicknesses (90–175 mm)
• Optional extra-long post (+100 mm) available as part no. 10-380-KL

Accessories & recommended items

• Clamp included: standard armboard clamp with hook-on function (part no. 10019, 10019-US or 10019-UK depending on version)
• Accessory rail adapters available: EU accessory rail (25×10 mm), US accessory rail (1⅛” x ⅜”), UK accessory rail (1¼” x ¼”)
• Recommended cushions for curved plates (not included): 10-382-K Curved comfort cushion, short — Material: Polyurethane, Mfoam, slow recovery
• Recommended straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long — Material: Polyester

Technical specifications

• Part Number EU: 10-380-K
• Part Number UK: 10-380-UK-K
• Part Number US: 10-380-K-US
• Length: 490 mm
• Width: 160 mm
• Height: 230 mm
• Height adjustment: 90-175 mm
• Weight: 3.8 kg
• Material: Stainless steel, Aluminum
