Positioning armrest 20-300

surgicaladjustable

Product overview

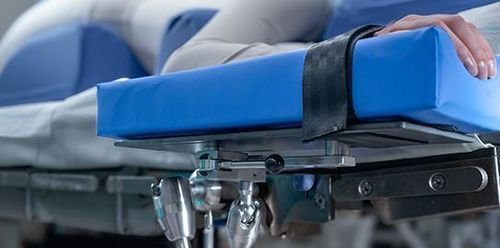

The Positioning Arm Table is a surgical armboard designed to support and position the patient’s arm during procedures in prone or elevated positions. It provides stable support with precise adjustability suitable for operating-room workflows.

Design and features
The device features a double-joint mechanism for rapid, fine adjustments. A variant (20-300-10) offers a horizontally adjustable plate for additional positioning control. Materials are selected for compatibility with clinical environments.

Models / Part numbers

• Positioning Arm Table, standard: 20-300
• Positioning Arm Table, horizontally adjustable plate: 20-300-10

Accessories

• Clamp included: A universal clamp is included with the product.
• Clamp for EU rail available: EU accessory rail (25×10 mm).
• Recommended Cushions: 11551 Black antistatic armboard pad, PU; 800.121-B Blue armboard pad with wings, PU; 800.121-E-1088 Blue armboard pad, PU.
• Recommended Straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long. Material: Polyester.

Documentation
User manual available in English and Swedish.

Technical specifications

• Part Number EU: 20-300, 20-300-10
• Length: 410 mm
• Width: 130-470 mm, 150-500 mm
• Height: 160 mm
• Weight: 4.1 kg, 5.3 kg
• SWL (Safe Working Load): 12 kg
• Material: Stainless steel, Aluminum, Plastic, Bakelite
