Operating table armrest 10-385

medical imagingstainless steelpolyester

Overview

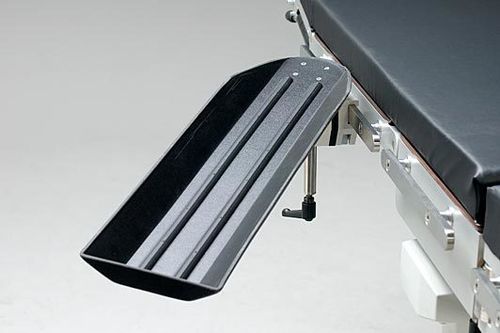

This armboard is designed for use with a C-arm image intensifier to allow fluoroscopic imaging of the patient's arm. It also functions as a conventional armboard for procedures such as IV insertion. The unit is lightweight yet sturdy for easy positioning at the operating table to meet surgeon requirements and preferences.

Accessories

• Clamp included: standard armboard clamp with hook-on function (part no. 10019, 10019-US or 10019-UK depending on version).
• Clamp/rail compatibility: EU accessory rail (25×10 mm); US accessory rail (1⅛" x ⅜"); UK accessory rail (1¼" x ¼").
• Recommended cushions for curved plates (not included): 10-381 Plane moulded cushion; 10-381-H Plane comfort cushion; 10-382 Curved moulded cushion; 10-382-H Curved comfort cushion; 10-382-HT Curved comfort cushion, high. Materials: Polyurethane, Mfoam, Slow recovery.
• Recommended straps (not included): 10-383 Strap for Armboard; 10-383-L Strap for Armboard, long. Material: Polyester.

Technical specifications

• Part Number EU: 10-385
• Part Number UK: 10-385-UK
• Part Number US: 10-385-US
• Length: 605 mm
• Width: 170 mm
• Height: 320 mm
• Weight: 2.2 kg
• Material: Stainless steel, Aluminum, Polycarbonate
