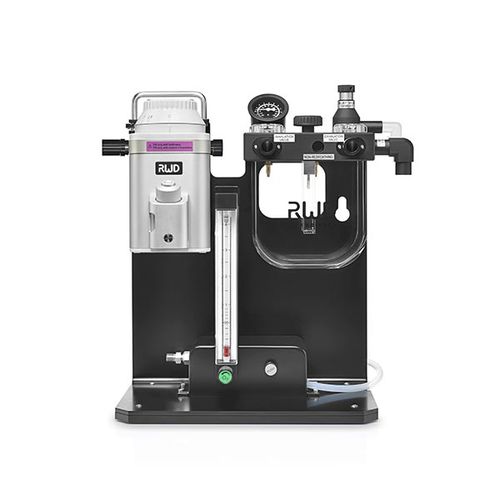

R610 provides rapid control of anesthetic depth with little resistance to respiration, includes non-rebreathing circuit (for less than 7kg animals) and cycled breathing circuit (for above 7kg animals) delivery system.
Features:
Accommodates animals within body weight 50kg, such as cats, dogs, monkeys, pigs etc.
Isoflurane or Sevoflurane vaporizer, and Pour-fill or Easy-fill style available.
Quick oxygen flush allows to rescuing animals during surgery.
Easy-to-view inhalation/exhalation valves allow easy monitoring of respiration for patient safety.
Anti-accident open lock structure and closed state security protection structure to ensure safety.
Good tightness, internal 50kPa pressure can be maintained, zero leakage, safe and reliable.
Specifications:
The built-in temperature compensator ensures the stable concentration of anesthetic gas at different temperatures and flow rates, the flow range is 0.2-10L/min.
Mixed anesthetic gas output pressure range △ P ≤ 2.5kPa.
Applicable temperature range: 10-35 ℃.
Internal capacity is not less than 120ml, and the range of isoflurane vaporizer concentration is 0-5% (Sevoflurane: 0-8%).
1L and 2L breathing bags, two kinds of breathing circuits and absorber included.
With scavenging/adjustable pressure limiting valve(APL) ranging from -20 to +120 cmH2O.
1100cc transparent CO2 absorber allows you to view the state of the calcium lime.
Stable and precise oxygen flowmeter with 0.1-4LPM scale, not affected by the gas supply fluctuation.
