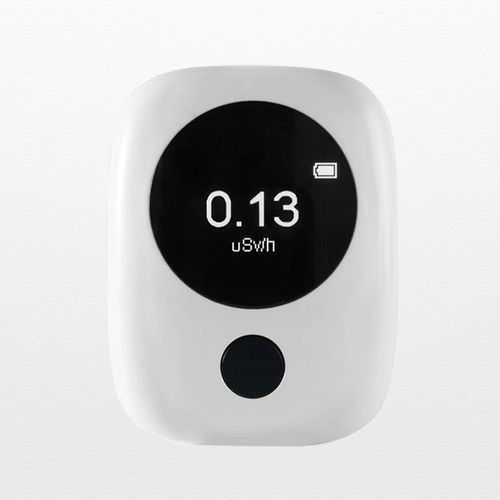

Gamma ray personal dosimeter

X-ray

Product introduction
Personal alarm dosimeter designed for occupational radiation monitoring in medical environments. Compact wearable unit with scintillation detector. Provides real-time dose rate measurement, cumulative dose display and audible/visual alarms. Bluetooth connection enables data transfer to mobile devices for logging and review.

Technical parameters

• Detector type: scintillation detector
• Sensitivity: 11 cps/μSv/h
• Range: 0.01 μSv/h - 100 mSv/h
• Response time: <8 s
• Relative inherent error: ≤±20%
• Size: 60 mm x 46 mm x 20 mm
• Communication: Bluetooth connection to mobile phone

Application fields

• Department of Radiology：Used for personnel monitoring in diagnostic imaging areas where X-rays and gamma rays are employed to produce clinical images.
• Department of Radiation Oncology：Suitable for staff monitoring in radiotherapy units using therapeutic X-rays, electron or particle beams.
• Department of Nuclear Medicine：Applicable in nuclear medicine departments for monitoring personnel working with radiopharmaceuticals and imaging devices.

Key specifications

• Compact wearable design for continuous monitoring
• Real-time dose rate and cumulative dose alarms
• Bluetooth connectivity for data logging
• Measurement range: 0.01 μSv/h–100 mSv/h
