- Shandong Hongxinyu Medical Technology Co., Ltd.
Medical compressor for hospitalsfor radiopharmacystationary
Add to favorites
Compare this product
Characteristics
- Applications
- medical, for hospitals, for radiopharmacy
- Configuration
- stationary
- Options and accessories
- with air dryer, silent, with soundproof housing
- Pressure
10 bar
(145.0377 psi)- Flow
Max.: 504 l/min
(133.14 us gal/min)Min.: 412 l/min
(108.84 us gal/min)- Power
Max.: 5.2 kW
(7.07 hp)Min.: 4.4 kW
(5.98 hp)- Weight
238 kg
(524.7 lb)- Noise level
Max.: 62 dB
Min.: 0 dB
- Length
138.5 cm
(54.5 in)- Width
65 cm
(25.6 in)- Height
98 cm
(38.6 in)
Description
Product name
Air compressor
Category
Radiopharmaceutical supporting
Product performance
Application fields
Key words
Air compressor
Technical specifications
Air compressor
Category
Radiopharmaceutical supporting
Product performance

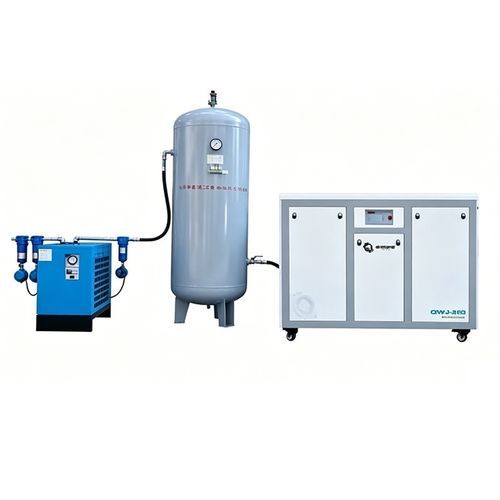

- Configuration: Cabinet-type low-noise air compressor + air storage tank + water-oil separator + refrigerated air dryer + two-stage precision filter
- Control mode: PLC automatic control
- Power supply: 380V (220V) / 50Hz
- Rated power: 5.2 kW (4.4 kW)
- Maximum working pressure: 1.0 MPa
- Air displacement: 504 (412) L/min at 0.8 MPa
- Air outlet connector: G1/4
- Noise level: ≤62 dB(A)
- Filtration accuracy: 5 μm / 0.1 μm / 0.01 μm
- Pressure dew point: 5°C
- Air tank capacity: 160 L built-in tank; 300 L external tank
- Net weight: 238 kg
- Overall dimensions (L x W x H): 1385 x 650 x 980 mm
Application fields
- Department of Radiology: Imaging diagnosis and interventional therapy using X-rays, gamma rays and other radiation to visualize internal structures.
- Department of Radiation Oncology: Localized cancer treatment using ionizing radiation delivered by external beams or radioactive sources.
- Department of Nuclear Medicine: Diagnostic and therapeutic procedures using radioactive isotopes, combining imaging and treatment.
Key words
Air compressor
Technical specifications
- Configuration: Cabinet-type low-noise air compressor; air storage tank; water-oil separator; refrigerated air dryer; two-stage precision filter
- Control mode: PLC automatic control
- Power supply: 380V (220V) / 50Hz
- Rated power: 5.2 kW (4.4 kW)
- Maximum working pressure: 1.0 MPa
- Air displacement: 504 (412) L/min at 0.8 MPa
- Air outlet connector: G1/4
- Noise level: ≤62 dB(A)
- Filtration accuracy: 5 μm / 0.1 μm / 0.01 μm
- Pressure dew point: 5°C
- Air tank capacity: 160 L built-in; 300 L external
- Net weight: 238 kg
- Dimensions (L x W x H): 1385 x 650 x 980 mm
