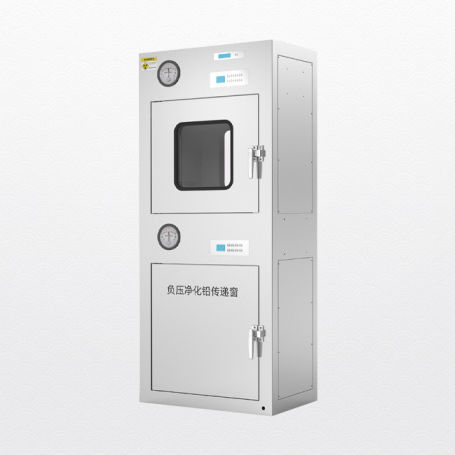

Nuclear medicine pass box

shielded

Product Introduction
The lead-shielded pass box is a radiation-protection transfer device designed for nuclear medicine, radiotherapy and radioactive laboratories. It provides a secure, isolated channel for transferring radiopharmaceuticals, radioactive seeds and contaminated instruments between radioactive zones and clean areas, reducing cross-contamination and minimizing external radiation exposure.

Product Performance

• Interlock mechanism prevents both doors from opening simultaneously during transfer.
• 304 stainless steel construction lined with high-purity lead plates.
• Double-door interlock effectively limits radiation leakage.
• Hygienic-grade silicone sealing strip ensures airtightness.

Technical Parameters
Material: Lead, lead glass, 304 stainless steel
Overall size: 1590 mm (H) x 450 mm (L) x 650 mm (W)
Lead shielding thickness: 20 mm Pb
Standard configuration: 1 lighting lamp, 1 UV lamp, 1 socket switch
Optional: with lead glass or without glass

Application Fields

• Radiology Department: Diagnostic imaging and interventional procedures using X-rays, gamma rays and other ionizing radiation.
• Radiation Oncology Department: Therapeutic use of ionizing radiation for cancer treatment from therapy units and medical accelerators.
• Nuclear Medicine Department: Diagnosis and treatment using radiopharmaceuticals; integrates imaging, therapy and research.

Technical specifications

• Material: Lead, lead glass, 304 stainless steel
• Overall size: 1590 mm (H) x 450 mm (L) x 650 mm (W)
• Lead shielding thickness: 20 mm Pb
• Standard configuration: 1 lighting lamp, 1 UV lamp, 1 socket switch
• Optional configurations: lead glass type or non-glass type
