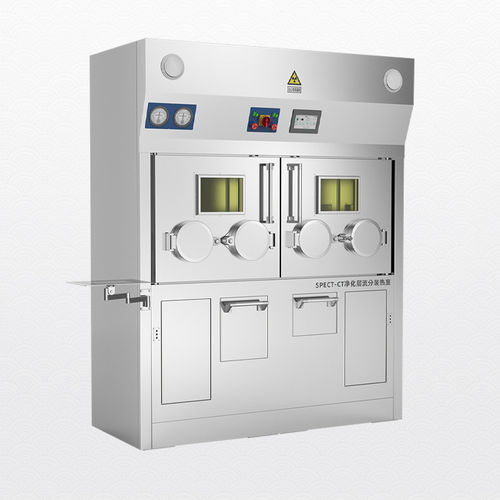

Nuclear medicine automated dispensing system

for radiopharmacywith computerwith touch screen

Product Introduction
Used for process protection in automatic and manual dispensing operations of SPECT radionuclides. Equipped with an intelligent AI human-machine interaction control platform, it allows for non-contact intelligent control of functions such as lighting, sterilization, negative pressure ventilation, drug lifting platform, switch sockets, and door interlocking of the fume hood.

Product Performance

• The work area meets Class A (ISO 100 level) purification standards.
• The front side is equipped with a high-lead glass observation window that matches the protective capability of the box body.
• It is equipped with four operating access holes and protective covers with locking mechanisms.
• Equipped with a front-opening acrylic protective door and enclosed gloves.
• Equipped with radiation monitoring probes, it can monitor the environmental radiation dose inside the cabinet in real time.
• Integrated into the human-computer interaction interface, it provides real-time display of internal radiation dose levels and safety interlocking.
• Accessories: lighting lamp, ultraviolet lamp, ozone sterilization device, power outlet, etc.
• Equip with a lifting device for the protective lead box to prevent secondary radiation pollution.

Technical Parameters
Overall dimensions：1700mm(W)x900mm(D)x2300mm(H)
Protective shielding：20mm Pb for the front and bottom, and 10mm Pb for other surfaces
Power exhaust filtration system：fan rated exhaust air volume ≥1200m³/h
Front hole wind speed：≥1m/s
Operating hand hole：Equivalent to 20mm Pb in protection, and equipped with a protective cover with a locking mechanism.

Application Fields

• Department of Radiology：The Department of Radiology is a comprehensive department integrating imaging diagnosis and interventional therapy. Radiological diagnosis employs X-rays, gamma rays and other radiation to penetrate the human body, rendering images of internal bodily structures and organs on fluorescent screens or radiographic films, enabling evaluation of human anatomical morphology, physiological functions and pathological lesions.
• Department of Radiation Oncology：Radiation oncology is a localized therapeutic modality that uses ionizing radiation for cancer treatment. Radiation sources include alpha, beta and gamma rays emitted from radioactive isotopes, as well as X-rays, electron beams, proton beams and other particle beams generated by various X-ray therapy units and medical accelerators.
• Department of Nuclear Medicine：It adopts nuclear science technologies for disease diagnosis and treatment. As an integrated department combining imaging, therapeutic services, scientific research and teaching, it serves as one of the core modalities in modern medicine.

Technical Specifications

• Work area purification: Class A (ISO 100 level).
• Observation window: High-lead glass matched to box protection capability.
• Operating access: Four hand access holes with protective covers and locks.
• Front protection: Front-opening acrylic protective door with enclosed gloves.
• Radiation monitoring: Built-in probes for real-time internal dose monitoring and display on HMI; safety interlocking included.
• Accessories: Lighting, ultraviolet lamp, ozone sterilization device, power outlets.
• Lead shielding: 20mm Pb front and bottom; 10mm Pb on other surfaces.
• Dimensions: 1700mm (W) x 900mm (D) x 2300mm (H).
• Exhaust system: Fan rated exhaust air volume ≥1200 m³/h with filtration.
• Front hole wind speed: ≥1 m/s.
• Operating hand hole protection equivalent to 20mm Pb; includes locking protective cover.
• Lifting device for protective lead box to prevent secondary radiation contamination.
