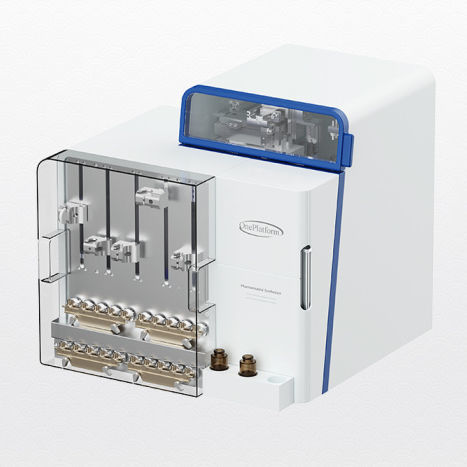

PET synthesis platform

radiochemistryradiotracerrobotized

Product overview
The module provides an automated platform for synthesis of complex radiopharmaceuticals labeled with 18F and 11C. It also supports radiolabeling of metal nuclides such as 68Ga, 64Cu and 177Lu and implements synthesis sequences for most mainstream PET tracers. The system standardizes radiochemical operations into a controlled synthesis workflow for repeatable routine production.

Key performance

• Main unit base dimensions: 510 mm × 510 mm × 500 mm
• 5-position 3-way valve servo actuators: 20 pieces
• Position & speed controlled syringe actuators: 5 pieces
• Weight: 45 kg
• Reactor: heating range ambient to 220°C; temperature accuracy ±0.5°C; water cooling mode; 1 unit standard, 1 externally connectable
• Equipment control software package: included; open architecture with graphical programming, full-process data logging and playback
• Automated workflow functions: equipment self-inspection, automatic synthesis, purification, solvent replacement, automatic cleaning for multi-nuclide productions
• Installation: designed for installation inside lead-shielded hot cells

Technical specifications

• Main Unit Base: 510 mm × 510 mm × 500 mm
• Valve actuators: 5-position 3-way servo actuators, 20 units
• Syringe actuators: position and speed controlled, 5 units
• Weight: 45 kg
• Reactor details: ambient to 220°C, ±0.5°C accuracy, water cooling; 1 unit standard, 1 additional external connection
• Control software: open architecture; supports import of synthesis protocols and graphical workflow design
• Automated features: self-inspection, synthesis, purification, solvent exchange, cleaning
• Hot cell compatibility: suitable for use inside lead-shielded hot cells

Application fields

• Department of Radiology: Integration of imaging diagnosis and interventional procedures using ionizing radiation to image anatomy and function.
• Department of Radiation Oncology: Localized therapeutic use of ionizing radiation for cancer treatment, including isotope- and beam-based therapies.
• Department of Nuclear Medicine: Diagnostic and therapeutic applications using radionuclides, supporting imaging, therapy, research and teaching.

Installation & software

• Can be installed inside standard lead-shielded hot cells.
• Open-architecture control software allows import of partner protocols and graphical programming.
• Full-process data logging and playback support traceability and workflow validation.
