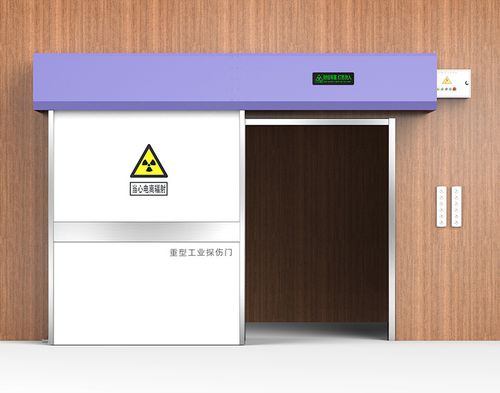

Radiation protection door

shieldedx-ray protectionhermetic

Product Introduction
Heavy-duty radiation shielding doors engineered for applications such as medical linear accelerators (≥10 MeV), Boron Neutron Capture Therapy (BNCT), and particle accelerators. Their core function is to provide simultaneous shielding against high-energy X/γ rays and neutron radiation, preventing radiation leakage and ensuring the safety of personnel and the environment.

Product Performance

• Motor: Adopts heavy-duty motors of renowned brands with a warranty of up to 5 years.
• Filling Material: Grade 1 standard electrolytic lead sheet and boron-containing polyethylene paraffin.
• Framer: Welded with channel steel, and horizontal braces are installed as supports.
• Color: Imported AkzoNobel paint (designated paint for medical doors nationwide).
• Door Body: Adopts a sinking design to ensure no radiation leakage at the bottom.
• Equipped with an intelligent control system; the program can be conveniently edited and adjusted.
• The protective door body is composed of a metal steel frame plus protective and shielding materials.
• The door is fitted with an intelligent obstacle-sensing anti-pinch safety system.

Application Fields

• Department of Radiology: The Department of Radiology integrates diagnostic imaging and interventional procedures. Radiological diagnosis uses X-rays, gamma rays and other ionizing radiation to image internal structures and organs, supporting evaluation of anatomy, function and pathology.
• Department of Radiation Oncology: Radiation oncology provides localized cancer treatment using ionizing radiation sources including X-rays, electron beams, proton beams and particle beams produced by medical accelerators and therapy units.
• Department of Nuclear Medicine: Uses nuclear science technologies for diagnosis and therapy. As an integrated service combining imaging, therapeutics, research and teaching, it is a core modality in modern medicine.

Category

• Lead protection door
• Radiopharmaceutical supporting

Key words

• Special Shielding Door for Cyclotron

Technical specifications

• Intended use: Shielding for high-energy X/γ rays and neutrons (suitable for medical linear accelerators ≥10 MeV, BNCT, particle accelerators).
• Motor: Heavy-duty branded motor, up to 5-year warranty.
• Shielding materials: Grade 1 electrolytic lead sheets; boron-containing polyethylene paraffin for neutron attenuation.
• Structural frame: Welded channel steel with horizontal braces for support.
• Surface finish: Imported AkzoNobel medical-grade paint.
• Design: Sinking door body to prevent bottom leakage; metal steel frame combined with shielding materials.
• Control & safety: Intelligent control system with editable program; intelligent obstacle-sensing anti-pinch system.
