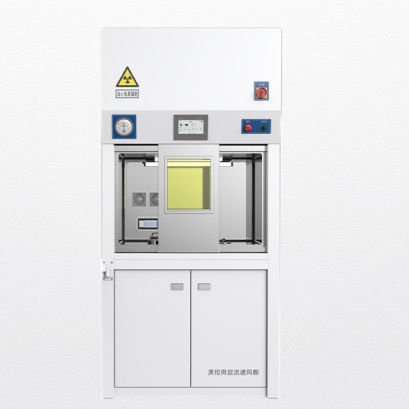

Containment glove box

dispensingfor nuclear medicinefor radioisotope preparation

Product overview
Shielded glove box designed for the automatic and manual packaging of I-131 radiopharmaceuticals. Integrates non-contact intelligent control, negative-pressure ventilation and real-time radiation monitoring to minimise operator exposure and ensure safe handling of radioactive drugs.

Key features

• R15 radius internal corners for a continuous, easy-to-clean surface.
• Inner liner manufactured from 304 mirror stainless steel, 2.0 mm thickness.
• Two front access glove ports fitted with locking protective covers.
• Drug transfer tank equipped with an electric lifting device to reduce close contact time with radioactive agents.
• Activity well with adjustable lifting platform for ionization-chamber height alignment of the activity meter.
• Real-time internal radiation dose display with safety interlocks and high-dose alarm.
• Front-mounted touchscreen electronic control for lighting, activity meter power, fan and other functions via non-contact operation.
• Negative-pressure ventilation system and door interlock for containment.

Technical parameters

• Noise level: < 50 dB
• Air velocity: > 1.2 m/s
• Power supply: 220 V, 50 Hz, 10 A
• Overall dimensions: 1050 mm (W) x 750 mm (D) x 2200 mm (H)
• Inner liner dimensions: 840 mm (W) x 540 mm (D) x 540 mm (H)

Application fields

• Department of Radiology: Handling and packaging of diagnostic radioisotopes and preparation of imaging agents under controlled conditions.
• Department of Radiation Oncology: Preparation and safe handling of therapeutic radiopharmaceuticals and isotope-based treatment materials.
• Department of Nuclear Medicine: Production, dispensing and quality control of radiopharmaceuticals for diagnosis and therapy.

Specifications

• R15 internal corner radii for improved hygiene and cleaning.
• 304 mirror-finish stainless steel inner liner, 2.0 mm thick.
• Two front glove access ports with lockable protective covers.
• Electric lifting device for the drug transfer tank to limit operator exposure.
• Adjustable lifting platform in the activity well for ionization chamber height setting.
• Integrated touchscreen control, real-time dose monitoring and safety interlocks.
• Negative-pressure ventilation and interlocked doors for containment.
• Noise <50 dB; airspeed >1.2 m/s; power 220 V/50 Hz/10 A.
• Overall: 1050×750×2200 mm; inner liner: 840×540×540 mm.
