Hospital trolley

for radioactive isotopesfor intravenous proceduresstainless steel

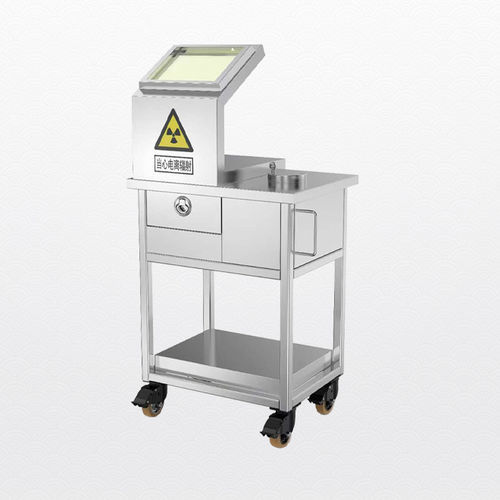

Product Introduction The radiation-shielding mobile injection cart is a purpose-built protective device for nuclear medicine clinical use, constructed from high-density lead shielding, lead glass and 304 stainless steel. Its fully enclosed shielding structure minimizes ionizing radiation exposure during transport, preparation and intravenous administration of radiopharmaceuticals, protecting medical staff, patients and the surrounding environment. The ergonomic push-pull handle and locking load-bearing swivel casters ensure smooth movement, stable positioning and safe operation in clinical workflows.

Product Performance

• Pull-out stainless steel drawer for instrument and syringe storage.
• Locking load-bearing universal casters for secure positioning.
• Rechargeable LED lamp for targeted illumination during preparation and injection.
• Dedicated lead waste bin with 20 mm Pb shielding for disposal of contaminated materials.

Technical Parameters Material: Lead, lead glass, 304 stainless steel
Protective screen size: 420 mm (W) x 450 mm (L) x 490 mm (H)
Lead shielding thickness: 20 mm Pb
Lead window size: 200 mm (W) x 250 mm (L) x 50 mm (D)
Injection cart overall size: 440 mm (W) x 570 mm (L) x 1200 mm (H)

Application Fields

• Department of Radiology: Imaging and interventional procedures using X-ray and gamma modalities for diagnostic and therapeutic guidance.
• Department of Radiation Oncology: Localized therapeutic applications using ionizing radiation for oncology treatments.
• Department of Nuclear Medicine: Diagnostic imaging and therapeutic services using radiopharmaceuticals in clinical and research settings.

Specifications

• Material: Lead, lead glass, 304 stainless steel
• Protective screen size: 420 mm (W) x 450 mm (L) x 490 mm (H)
• Lead shielding thickness: 20 mm Pb
• Lead window size: 200 mm (W) x 250 mm (L) x 50 mm (D)
• Overall size: 440 mm (W) x 570 mm (L) x 1200 mm (H)
• Features: pull-out stainless steel drawer, locking load-bearing universal casters, rechargeable lamp, dedicated lead waste bin (20 mm Pb)
