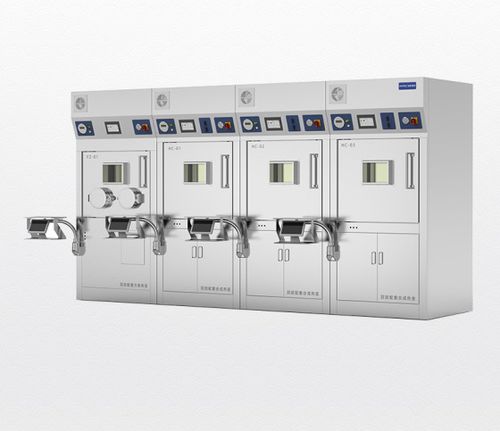

Synthesis shielded cell

for nuclear medicinefor radiopharmacyshielded

Product Introduction
Intelligent hot cell synthesis module designed for radiopharmaceutical preparation and shielded handling. Integrated PLC and touch HMI allow non-contact control of lighting, ozone sterilization, negative-pressure ventilation, reagent/platform lift, sockets and door interlocks. Supplied with four gas lines (with shut-off valves), tube/threading sealers for radioactive vials and power lines, and a waterproof 220 V socket. Configurable to accept packaging modules, lighting fixtures and ozone sterilizers.

Product Performance

• Supports automatic and manual packaging workflows; working zone compliant with Class A (ISO 100) cleanliness.
• Compatible with CRC series and domestic activity meters for real-time activity readout.
• Adjustable pressure differential between internal chamber and clean room: -10 Pa to -60 Pa.
• Front lead-glass observation window for visual monitoring.
• Integrated recessed ionization-chamber well for activity meter with adjustable shielding height.

Technical Specifications

• Air change rate: ≥ 25 times/hour; laminar flow wind speed: 0.35–0.56 m/s; noise: ≤ 50 dB.
• Protective shielding thickness: 50–60 mm Pb (customizable).
• Negative pressure indication: electronic negative pressure gauge.
• Radiation detector: energy range 50 keV–1.5 MeV; dose rate range 0 µSv/h–9999 µSv/h; energy accuracy ±10%.
• Overall dimensions: 1150 × 1100 × 2400 mm; power supply: 220 V / 2 kW.

Application Fields

• Radiology: Integrated imaging diagnosis and interventional procedures requiring radiopharmaceutical handling.
• Radiation Oncology: Localized therapeutic preparation and handling of radioactive agents.
• Nuclear Medicine: Preparation, dispensing and quality control of radiopharmaceuticals; supports imaging and therapeutic workflows.

Options & Accessories

• Custom shielding thickness and materials.
• Additional gas lines or specialized connectors.
• Ozone sterilization unit, dedicated packaging module mounts, and customized activity meter wells.
