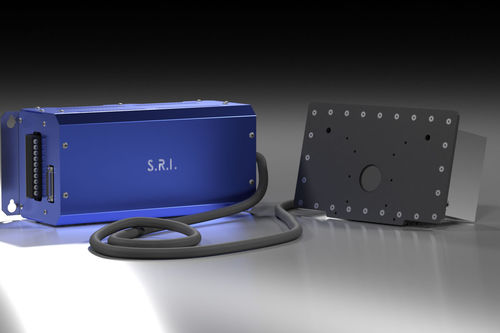

Radiography X-ray generator XRS-100

portable

Overview

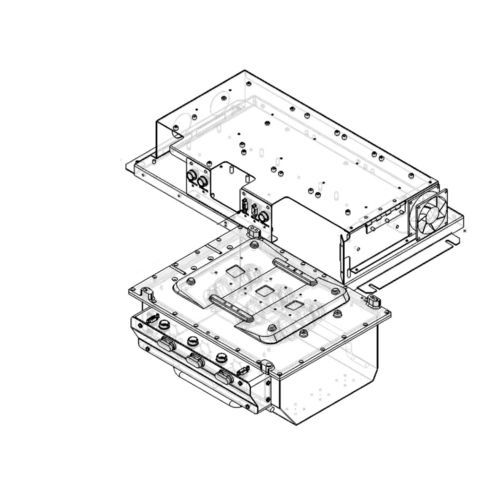

The XRS-100 family of modular X-ray generators provides up to 100 kV and 1.3 kW output for industrial radiography and inspection applications. The modular design supports multiple tube configurations and system integration for inline or portable setups.

Available model

• XRS-100-13K-P-3T

XRS-100-13K-P-3T - Key specifications

• Max kV: 100 kV
• Max mA: 13 mA
• Max Power: 1.3 kW (1300 W)
• Duty Cycle: 10% pulsed
• Input Power: 120 VAC / 240 VAC
• Minimum focal spot: 0.5 mm

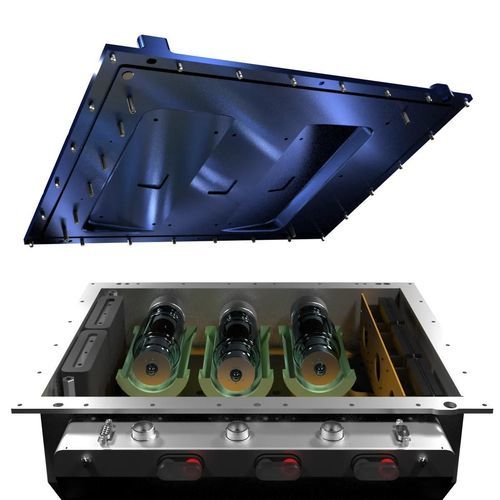

• X-ray tube: Glass (3 tubes)

Family comparison (excerpt)

• SB-50 | 50 kV | 50 W | Integrated
• SB-60 | 60 kV | 20 W | Integrated
• SB-80 | 80 kV | 160 W | Integrated
• SB-100 | 100 kV | 50 W | Integrated
• SB-120 | 120 kV | 48 W | Integrated
• SB-160 | 160 kV | 320 W | Integrated
• SB-200 | 200 kV | 800 W | Integrated
• SB-250 | 250 kV | 750 W | Integrated
• XRS-100 | 100 kV | 1.3 kW | Modular
• XRS-120 | 120 kV | 3 kW | Modular
• XRS-125 | 125 kV | 875 W | Modular
• XRS-135 | 135 kV | 675 W | Modular
• XRS-140 | 140 kV | 1.05 kW | Modular
• XRS-160 | 160 kV | 1 kW | Modular
• XRS-180 | 180 kV | 1 kW | Modular
• XRS-200 | 200 kV | 1 kW | Modular
• XRS-250 | 250 kV | 1 kW | Modular

Technical specifications

• Family: XRS-100
• Model on page: XRS-100-13K-P-3T
• Max Voltage (Max kV): 100 kV
• Max Current (Max mA): 13 mA
• Max Power: 1.3 kW (1300 W)
• Duty Cycle: 10% pulsed
• Input Power: 120 VAC / 240 VAC
• Minimum focal spot: 0.5 mm
• X-ray tube: Glass (3 tubes)
• Product type: Modular X-ray generator family
