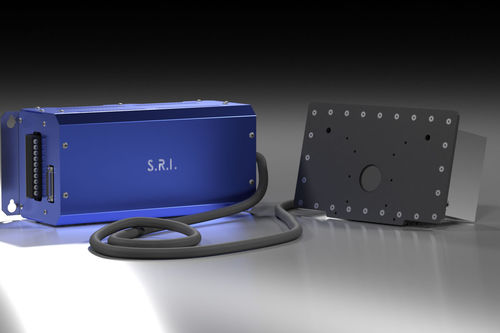

Radiography X-ray generator XRS-135

equipment-mounted

Overview

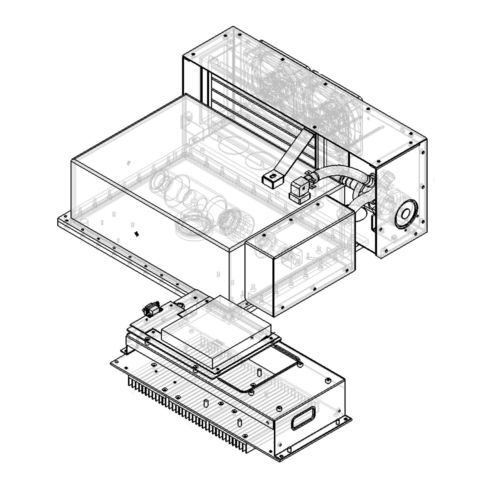

The XRS-135 family of modular X-ray generators provides up to 135 kV and 675 W output for industrial X-ray imaging and non-destructive testing. Designed for continuous duty with a compact modular architecture and a beryllium tube window.

Models

• XRS-135-5K-BW-HE

XRS-135-5K-BW-HE - Product details

• Maximum tube voltage: 135 kV
• Maximum tube current: 5 mA
• Maximum output power: 675 W
• Duty cycle: Continuous
• Input power: 100–240 VAC
• Minimum focal spot size: 1.5 mm
• X-ray tube window / material: Beryllium

Family comparison

• SB-50 — 50 kV — 50 W — Integrated
• SB-60 — 60 kV — 20 W — Integrated
• SB-80 — 80 kV — 160 W — Integrated
• SB-100 — 100 kV — 50 W — Integrated
• SB-120 — 120 kV — 48 W — Integrated
• SB-160 — 160 kV — 320 W — Integrated
• SB-200 — 200 kV — 800 W — Integrated
• SB-250 — 250 kV — 750 W — Integrated
• XRS-100 — 100 kV — 1.3 kW — Modular
• XRS-120 — 120 kV — 3 kW — Modular
• XRS-125 — 125 kV — 875 W — Modular
• XRS-135 — 135 kV — 675 W — Modular
• XRS-140 — 140 kV — 1.05 kW — Modular
• XRS-160 — 160 kV — 1 kW — Modular
• XRS-180 — 180 kV — 1 kW — Modular
• XRS-200 — 200 kV — 1 kW — Modular
• XRS-250 — 250 kV — 1 kW — Modular

Specifications

• Family: XRS-135
• Typical maximum tube voltage: 135 kV
• Maximum tube current (example variant XRS-135-5K-BW-HE): 5 mA
• Maximum output power (example variant): 675 W
• Duty cycle: Continuous
• Input power: 100–240 VAC
• Minimum focal spot size: 1.5 mm
• X-ray tube window / material: Beryllium
