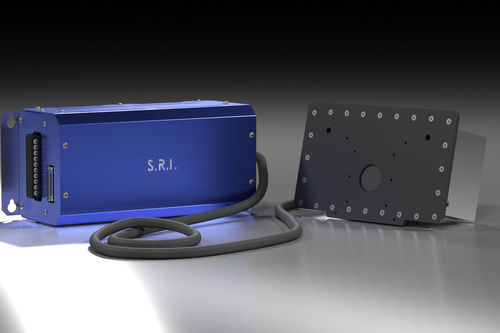

Radiography X-ray generator XRS-140

equipment-mounted

Overview
The XRS-140 family of X-ray generators provides up to 140 kV and 1.05 kW output in a modular format suitable for medical and laboratory X-ray systems. The family supports pulsed operation and compact tube integration for system-level flexibility.

Variant: XRS-140-7.5K-P
Max kV: 140 kV
Max mA: 7.5 mA
Max Power: 1.05 kW
Duty Cycle: 10% pulsed
Input Power: 120 VAC / 240 VAC
Min focal spot: 0.6 mm
X-ray tube: Glass

Related product families (selection)

• SB-50 - 50 kV - 50 W - Integrated
• SB-60 - 60 kV - 20 W - Integrated
• SB-80 - 80 kV - 160 W - Integrated
• SB-100 - 100 kV - 50 W - Integrated
• SB-120 - 120 kV - 48 W - Integrated
• SB-160 - 160 kV - 320 W - Integrated
• SB-200 - 200 kV - 800 W - Integrated
• SB-250 - 250 kV - 750 W - Integrated
• XRS-100 - 100 kV - 1.3 kW - Modular
• XRS-120 - 120 kV - 3 kW - Modular
• XRS-125 - 125 kV - 875 W - Modular
• XRS-135 - 135 kV - 675 W - Modular
• XRS-140 - 140 kV - 1.05 kW - Modular
• XRS-160 - 160 kV - 1 kW - Modular
• XRS-180 - 180 kV - 1 kW - Modular
• XRS-200 - 200 kV - 1 kW - Modular
• XRS-250 - 250 kV - 1 kW - Modular

Technical specifications

• Family: XRS-140
• Model variant: XRS-140-7.5K-P
• Maximum tube voltage (Max kV): 140 kV
• Maximum current (Max mA): 7.5 mA
• Maximum output power: 1.05 kW (1050 W)
• Duty cycle: 10% pulsed
• Input power: 120 VAC / 240 VAC
• Minimum focal spot: 0.6 mm
• X-ray tube type: Glass
• Product family category: Modular X-ray generator
