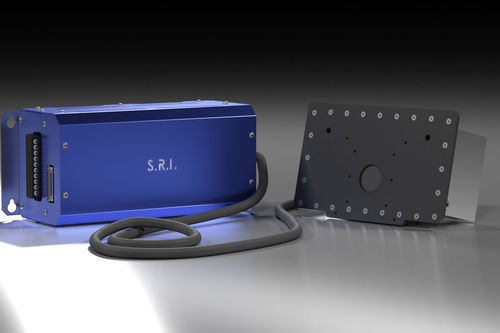

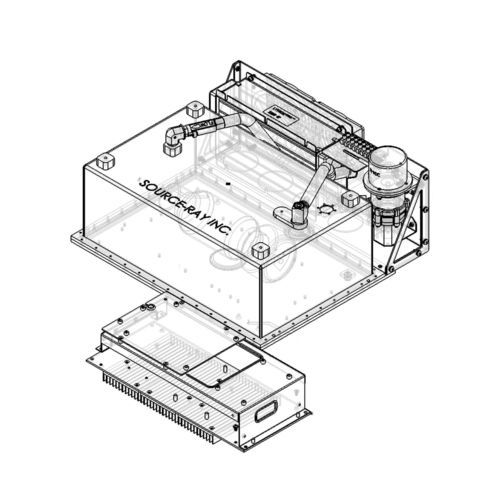

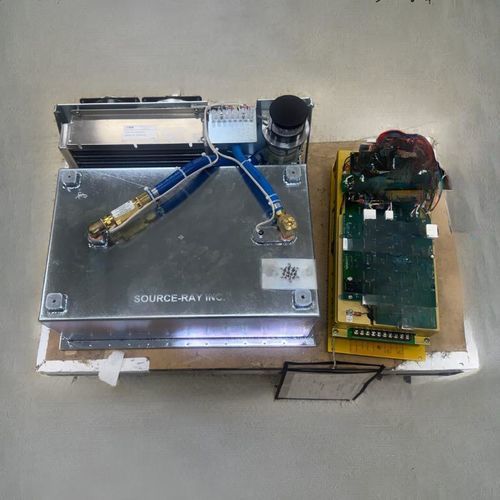

Radiography X-ray generator XRS-180

for fluoroscopyequipment-mounted

Overview
Modular X-ray generator family for medical imaging applications, delivering up to 180 kV and 1 kW output. Designed for continuous-duty operation and straightforward integration with radiography and fluoroscopy systems. Typical installation supports 120 VAC / 240 VAC input and glass X-ray tubes (example model).

Available model (example shown)
XRS-180-5.5K-HE

• Max kV: 180 kV
• Max mA: 5.5 mA
• Max Power: 1 kW
• Duty Cycle: Continuous
• Input Power: 120 VAC / 240 VAC
• Min Focal Spot: 2.5 mm
• X-ray Tube: Glass

Related product families (selection)

• SB-50 — Max kV: 50 kV — Max Power: 50 W — Notes: Integrated
• SB-60 — Max kV: 60 kV — Max Power: 20 W — Notes: Integrated
• SB-80 — Max kV: 80 kV — Max Power: 160 W — Notes: Integrated
• SB-100 — Max kV: 100 kV — Max Power: 50 W — Notes: Integrated
• SB-120 — Max kV: 120 kV — Max Power: 48 W — Notes: Integrated
• SB-160 — Max kV: 160 kV — Max Power: 320 W — Notes: Integrated
• SB-200 — Max kV: 200 kV — Max Power: 800 W — Notes: Integrated
• SB-250 — Max kV: 250 kV — Max Power: 750 W — Notes: Integrated
• XRS-100 — Max kV: 100 kV — Max Power: 1.3 kW — Notes: Modular
• XRS-120 — Max kV: 120 kV — Max Power: 3 kW — Notes: Modular
• XRS-125 — Max kV: 125 kV — Max Power: 875 W — Notes: Modular
• XRS-135 — Max kV: 135 kV — Max Power: 675 W — Notes: Modular
• XRS-140 — Max kV: 140 kV — Max Power: 1.05 kW — Notes: Modular
• XRS-160 — Max kV: 160 kV — Max Power: 1 kW — Notes: Modular
• XRS-180 — Max kV: 180 kV — Max Power: 1 kW — Notes: Modular
• XRS-200 — Max kV: 200 kV — Max Power: 1 kW — Notes: Modular
• XRS-250 — Max kV: 250 kV — Max Power: 1 kW — Notes: Modular

Technical specifications

• Family: XRS-180 (modular X-ray generator family)
• Typical maximum voltage (family): up to 180 kV
• Typical maximum output power (family): 1 kW
• Example model: XRS-180-5.5K-HE — Max kV: 180 kV
• XRS-180-5.5K-HE — Max current: 5.5 mA
• XRS-180-5.5K-HE — Max power: 1 kW
• Duty cycle: Continuous
• Input power: 120 VAC / 240 VAC
• Minimum focal spot: 2.5 mm
• X-ray tube type (example model): Glass
