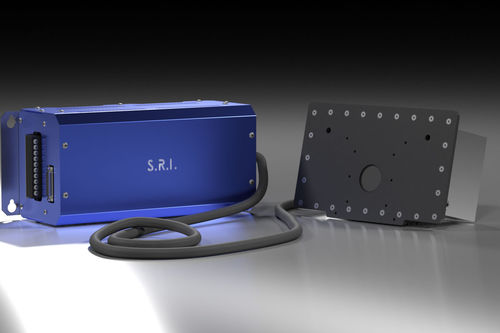

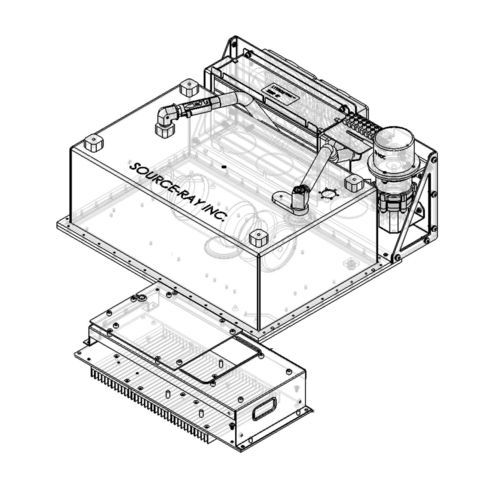

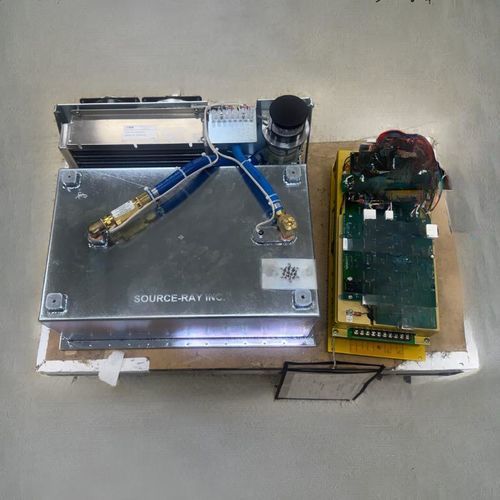

Radiography X-ray generator XRS-200

equipment-mounted

Overview
The XRS-200 family of X-ray generators delivers up to 200 kV and 1 kW continuous output for X‑ray imaging and analysis. The series supports modular installation and offers flexible input power options for integration into laboratory, inspection or imaging systems.

Available model (example shown on this page)

• XRS-200-5K-HE

XRS-200-5K-HE — Key data

• Max kV: 200 kV
• Max mA: 5 mA
• Max Power: 1 kW (1000 W)
• Duty Cycle: Continuous
• Input Power: 120 VAC / 240 VAC
• Min Focal Spot: 2.5 mm
• X-Ray Tube: Glass

Family comparison

• SB-50 — 50 kV — 50 W — Integrated
• SB-60 — 60 kV — 20 W — Integrated
• SB-80 — 80 kV — 160 W — Integrated
• SB-100 — 100 kV — 50 W — Integrated
• SB-120 — 120 kV — 48 W — Integrated
• SB-160 — 160 kV — 320 W — Integrated
• SB-200 — 200 kV — 800 W — Integrated
• SB-250 — 250 kV — 750 W — Integrated
• XRS-100 — 100 kV — 1.3 kW — Modular
• XRS-120 — 120 kV — 3 kW — Modular
• XRS-125 — 125 kV — 875 W — Modular
• XRS-135 — 135 kV — 675 W — Modular
• XRS-140 — 140 kV — 1.05 kW — Modular
• XRS-160 — 160 kV — 1 kW — Modular
• XRS-180 — 180 kV — 1 kW — Modular
• XRS-200 — 200 kV — 1 kW — Modular
• XRS-250 — 250 kV — 1 kW — Modular

Technical specifications

• Family: XRS-200 series
• Example model: XRS-200-5K-HE
• Maximum voltage (Max kV): 200 kV
• Maximum current (Max mA): 5 mA
• Maximum power: 1 kW (1000 W)
• Duty cycle: Continuous
• Input power options: 120 VAC / 240 VAC
• Minimum focal spot: 2.5 mm
• X-ray tube type: Glass
