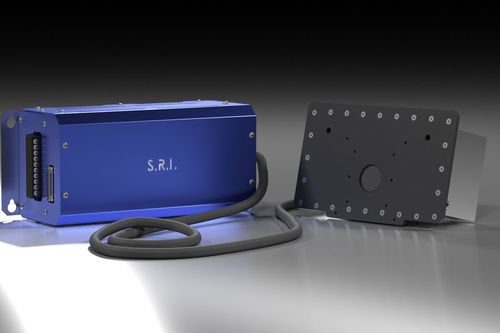

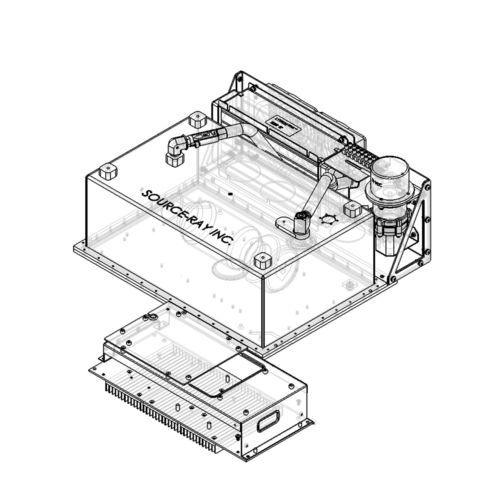

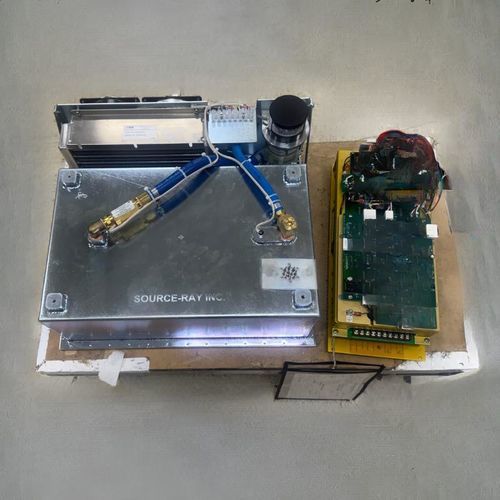

Radiography X-ray generator XRS-250

equipment-mounted

Overview
The XRS-250 family of X-ray generators is engineered to provide high-voltage output up to 250 kV and typical maximum output power of 1000 W. It is intended for integration in imaging and inspection systems requiring a compact, modular high-voltage source.

Available model

• XRS-250-4K-HE

XRS-250-4K-HE technical table

• Max kV: 250 kV
• Max mA: 4 mA
• Max Power: 1 kW
• Duty Cycle: Continuous
• Input Power: 120 VAC / 240 VAC
• Min Focal Spot: 2.5 mm
• X-ray Tube: Glass

Family comparison table
SB-50 | 50 kV | 50 W | Integrated
SB-60 | 60 kV | 20 W | Integrated
SB-80 | 80 kV | 160 W | Integrated
SB-100 | 100 kV | 50 W | Integrated
SB-120 | 120 kV | 48 W | Integrated
SB-160 | 160 kV | 320 W | Integrated
SB-200 | 200 kV | 800 W | Integrated
SB-250 | 250 kV | 750 W | Integrated
XRS-100 | 100 kV | 1.3 kW | Modular
XRS-120 | 120 kV | 3 kW | Modular
XRS-125 | 125 kV | 875 W | Modular
XRS-135 | 135 kV | 675 W | Modular
XRS-140 | 140 kV | 1.05 kW | Modular
XRS-160 | 160 kV | 1 kW | Modular
XRS-180 | 180 kV | 1 kW | Modular
XRS-200 | 200 kV | 1 kW | Modular
XRS-250 | 250 kV | 1 kW | Modular

Features / technical specifications

• Family: XRS-250
• Typical maximum voltage (family): up to 250 kV
• Typical maximum output power (family): 1000 W
• Shown model: XRS-250-4K-HE
• XRS-250-4K-HE — Max kV: 250 kV
• XRS-250-4K-HE — Max mA: 4 mA
• XRS-250-4K-HE — Max Power: 1 kW
• XRS-250-4K-HE — Duty Cycle: Continuous
• XRS-250-4K-HE — Input Power: 120 VAC / 240 VAC
• XRS-250-4K-HE — Minimum focal spot: 2.5 mm
• XRS-250-4K-HE — X-ray tube: Glass
