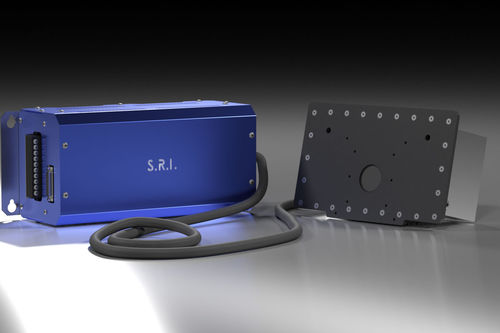

Radiography X-ray generator XRS-120 series

equipment-mounted

Overview
The XRS-120 family of modular X-ray generators provides 120 kV operation with family maximum power up to 3 kW. Designed for industrial radiography and component inspection, the series offers pulsed duty operation and glass X-ray tubes with selectable focal spot sizes to match application requirements.

Variants
XRS-120-15K-P
Max kV: 120 kV
Max mA: 15 mA
Max Power: 1.8 kW
Duty Cycle: 10% pulsed
Input Power: 120/240 VAC
Min Focal Spot: 1.0 mm
X-ray Tube: Glass

XRS-120-25K-P
Max kV: 120 kV
Max mA: 25 mA
Max Power: 3.0 kW
Duty Cycle: 10% pulsed
Input Power: 240 VAC
Min Focal Spot: 1.2 mm
X-ray Tube: Glass

Technical specifications

• Family: XRS-120 series
• Maximum voltage: 120 kV
• Maximum family power: up to 3 kW (3,000 W)
• Available variants: XRS-120-15K-P, XRS-120-25K-P
• Design: modular X-ray generator family
• Duty cycle: pulsed 10% (both variants)
• Tube type: glass X-ray tube

Related product families

• SB-50 — 50 kV | 50 W | Integrated
• SB-60 — 60 kV | 20 W | Integrated
• SB-80 — 80 kV | 160 W | Integrated
• SB-100 — 100 kV | 50 W | Integrated
• SB-120 — 120 kV | 48 W | Integrated
• SB-160 — 160 kV | 320 W | Integrated
• SB-200 — 200 kV | 800 W | Integrated
• SB-250 — 250 kV | 750 W | Integrated
• XRS-100 — 100 kV | 1.3 kW | Modular
• XRS-120 — 120 kV | 3 kW | Modular
• XRS-125 — 125 kV | 875 W | Modular
• XRS-135 — 135 kV | 675 W | Modular
• XRS-140 — 140 kV | 1.05 kW | Modular
• XRS-160 — 160 kV | 1 kW | Modular
• XRS-180 — 180 kV | 1 kW | Modular
• XRS-200 — 200 kV | 1 kW | Modular
• XRS-250 — 250 kV | 1 kW | Modular

Applications

• Industrial radiography and non-destructive testing (NDT)
• Component and assembly inspection
• Quality control in manufacturing lines
• Research and laboratory testing requiring pulsed high-voltage sources

Ordering and support
Available variants and input power options facilitate integration into existing systems. Contact sales or technical support for configuration, mounting, and service options.
