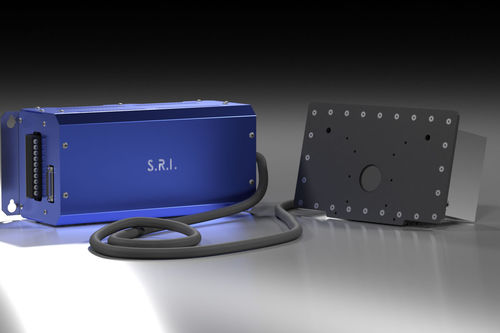

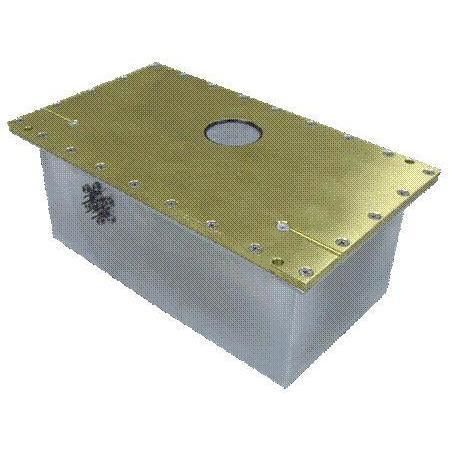

Radiography X-ray generator XRS-125

equipment-mounted

Product overview
The XRS-125 family of modular X-ray generators provides peak voltages up to 125 kV with a family-rated maximum output of 875 W. Intended for medical imaging and industrial inspection applications requiring compact, modular high-voltage sources.

Variant: XRS-125-7K-P

• Peak voltage (Max kV): 125 kV
• Maximum current (Max mA): 7 mA
• Maximum output power: 875 W
• Duty cycle: 10% pulsed
• Input power: 120 VAC / 240 VAC
• Minimum focal spot: 0.5 mm
• X-ray tube type: Glass

Family comparison

• SB-50 — 50 kV, 50 W, Integrated
• SB-60 — 60 kV, 20 W, Integrated
• SB-80 — 80 kV, 160 W, Integrated
• SB-100 — 100 kV, 50 W, Integrated
• SB-120 — 120 kV, 48 W, Integrated
• SB-160 — 160 kV, 320 W, Integrated
• SB-200 — 200 kV, 800 W, Integrated
• SB-250 — 250 kV, 750 W, Integrated
• XRS-100 — 100 kV, 1.3 kW, Modular
• XRS-120 — 120 kV, 3 kW, Modular
• XRS-125 — 125 kV, 875 W, Modular
• XRS-135 — 135 kV, 675 W, Modular
• XRS-140 — 140 kV, 1.05 kW, Modular
• XRS-160 — 160 kV, 1 kW, Modular
• XRS-180 — 180 kV, 1 kW, Modular
• XRS-200 — 200 kV, 1 kW, Modular
• XRS-250 — 250 kV, 1 kW, Modular

Technical specifications

• Family: XRS-125
• Peak Voltage (Max kV): up to 125 kV
• Maximum Output Power (family rating): 875 W
• Example variant (XRS-125-7K-P) - Max kV: 125 kV
• Example variant (XRS-125-7K-P) - Max mA: 7 mA
• Example variant (XRS-125-7K-P) - Max Power: 875 W
• Duty Cycle (example variant): 10% Pulsed
• Input Power: 120 VAC / 240 VAC
• Minimum Focal Spot: 0.5 mm
• X-Ray Tube Type: Glass
• Product family type: Modular x-ray generators (XRS series)
