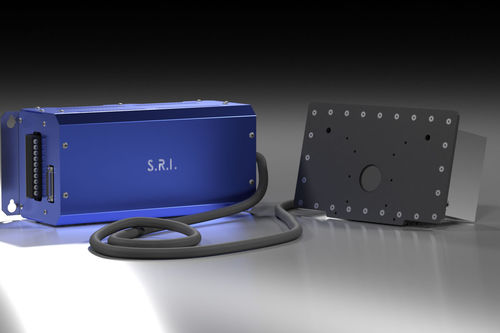

Radiography X-ray generator XRS-160

equipment-mounted

Overview
The XRS-160 family of X-ray generators delivers X-ray output up to 160 kV and 1 kW, designed for continuous operation and modular integration into medical imaging and laboratory systems.

Models

• XRS-160-6.25K-HE

Model specifications (XRS-160-6.25K-HE)
Max kV | 160 kV
Max mA | 6.25 mA
Max Power | 1 kW
Duty Cycle | Continuous
Input Power | 100-240 VAC
Min Focal Spot | 2.5 mm
X-Ray Tube | Glass

Family reference (excerpt)
Family | Max kV | Max Power | Notes
XRS-160 | 160 kV | 1 kW | Modular

Technical characteristics / specifications

• Family name: XRS-160
• Maximum voltage (Max kV): 160 kV
• Maximum current (Max mA) for XRS-160-6.25K-HE: 6.25 mA
• Maximum output power: 1 kW (1000 W)
• Duty cycle: Continuous
• Input power: 100-240 VAC
• Minimum focal spot: 2.5 mm
• X-ray tube type: Glass
• Product family type: Modular
