Instrument sterilization tray YRCM-4 series

for surgical instrumentsperforatedstainless steel

Item Name

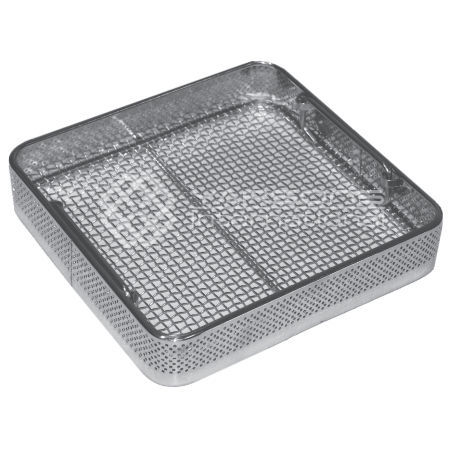

Perforated Mesh Tray, Round Corner — YRCM-4050

Item Description
Designed for rapid drying, handling and storage of surgical and medical instruments after washing and sterilization. The perforated wire base improves liquid and gas flow by approximately 30%, facilitating faster processing and effective sterilization cycles.

Features

• Material: Stainless steel 304, non-magnetic
• Electropolished finish for enhanced corrosion resistance
• Rounded, deburred edges to protect instrument tips
• Easy-to-lock sidewalls; pull-up handles for secure handling
• Perforated sidewalls to protect sharp edges and instrument tips
• Perforation: 2.5 mm or 22 swg
• Mesh openings (spotted): 5.5 x 5.5 x 1.2 mm
• Available lids: single frame, double frame, detention frame
• Compatible with automated washers and sterilizers
• Durability: withstands 1000+ sterilization cycles without loss of shape, function or appearance
• All trays are stackable for efficient storage
• Wide range of accessories: silicone mats, silicone inserts, identification tags

Size (table)
YRCM-4050 | 255 x 245 x 50
YRCM-4070 | 255 x 245 x 70
YRCM-4100 | 255 x 245 x 100

Other details
Surface finish options: mirror, luster, satin, brushed and colored
Cutting method: Laser cut
