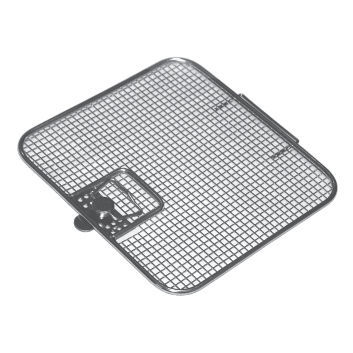

Instrument tray lid YWD-900 series

for sterilization containersfor sterilization basketsperforated

Product Mesh tray lid YWD-9005 designed for quick drying and secure storage of surgical and dental instruments. The wire/mesh base and perforated sidewalls enhance liquid and gas flow during washing and sterilization while protecting sharp edges and tips.

Applications

• Rapid drying of instruments after washing and sterilization
• Handling and storage of surgical and dental instruments
• Improves sterilization efficiency by enhancing liquid and gas circulation

Key features

• Stainless steel 304 (medical grade), non-magnetic
• Electropolished finish; surface options: mirror, luster, satin, brushed or colored
• Rounded, deburred edges to protect instruments
• Easy-lock mechanism and stackable design
• Perforated sidewalls to protect sharp instrument edges and tips
• Perforation: 2.5 mm or 22 SWG; mesh: 5.5 x 5.5 x 1.2 mm
• Available with pull-up and stackable handles
• Single-frame, double-frame and detention-frame lids available
• Compatible with automatic washing and sterilization equipment
• Designed for long life: withstands 1000+ sterilization cycles
• Wide range of accessories: silicone mats, silicone inserts and tags

Sizes
YWD-9004 | 255 x 245
YWD-9005 | 255 x 120
YWM-9008 | 250 x 240

Additional details

• Size: as listed above
• SKU: not specified
• Material: Stainless steel 304 (medical grade)
• Surface finish: mirror, luster, satin, brushed, colored
• Cutting: laser cut
• Stackable: all trays are stackable

Technical specifications

• Model: YWD-9005
• Material: Stainless steel 304, non-magnetic
• Surface finish options: mirror, luster, satin, brushed, colored
• Perforation options: 2.5 mm or 22 SWG
• Mesh dimensions (where applicable): 5.5 x 5.5 x 1.2 mm
• Edge treatment: rounded, deburred
• Locking: easy-lock mechanism
• Handles: pull-up and stackable
• Frame/lid options: single-frame, double-frame, detention-frame
• Compatibility: suitable for automatic washing and sterilization
• Durability: designed to withstand 1000+ sterilization cycles
• Accessories: silicone mats, silicone inserts, tags
