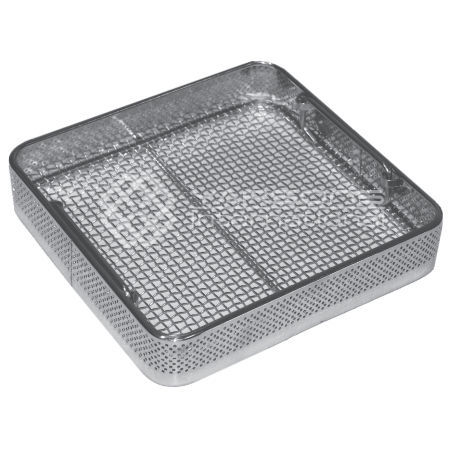

Instrument sterilization tray YRCM-4050

for surgical instrumentsfor dental instrumentsautoclavable

Item Name
Perforated Mesh Tray Round Corner

Item Description
The wire base is designed for quick drying instruments after washing and sterilizing. Perfect for handling and storage of instruments. Offers 30% more liquid and gas flow with specific perforations.

Uses

• Quick drying of instruments after washing and sterilization
• Handling and storage of surgical/dental instruments
• Compatible with automatic washing and sterilization processes

Features

• Manufactured with stainless steel 304, non-magnetic
• Electropolished
• Rounded, deburred edges
• Easy-to-lock sidewalls
• Sidewalls are perforated to protect sharp instrument edges and tips from damage
• Perforation: 2.5 mm or 22 swg
• Mesh Trays: spotted 5.5 x 5.5 x 1.2 mm
• Available in a number of sizes
• Pull-up and stackable handles
• Single frame, double frame, and detention frame lids available
• All trays are stackable
• Wide range of accessories available including silicon mats, silicone inserts, and tags
• Extreme long life: can withstand 1000+ cycles in several sterilization processes without losing shape, functionality, or aesthetics
• Cutting: Laser cut
• Surface finish options: Mirror, luster, satin, brushed and colored

Sizes (table)
YRCM-4050 | 255 x 245 x 50
YRCM-4070 | 255 x 245 x 70
YRCM-4100 | 255 x 245 x 100

Specifications / Technical data

• Model: YRCM-4050 (also available YRCM-4070, YRCM-4100)
• Dimensions (example): 255 x 245 x 50 mm (YRCM-4050)
• Material: Stainless steel 304, medical grade, non-magnetic
• Perforation options: 2.5 mm or 22 swg; mesh spotted 5.5 x 5.5 x 1.2 mm
• Surface finish: Mirror, luster, satin, brushed, colored
• Cutting method: Laser cut
• Handles: Pull-up, stackable
• Lid options: Single frame, double frame, detention frame
• Compatibility: Designed for automatic washing and sterilization
• Durability: Rated for 1000+ sterilization cycles without loss of form or function
• Stackable: Yes
• Accessories: Silicone mats, silicone inserts, tags (available)
