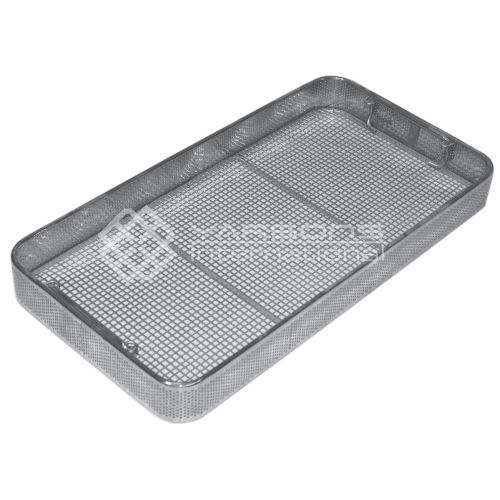

Surgical instrument sterilization tray YRCM series

for instrumentssiliconeperforated

Item Name
Perforated Mesh Tray, Round Corner (YRCM-1051)

Uses
Designed for drying, handling and storage of surgical and clinical instruments after washing and sterilization. Optimized perforation and mesh layout ensure increased liquid and gas flow during automated washer-disinfectors and sterilizers.

Features

• Manufactured from stainless steel 304 (medical grade), non-magnetic
• Electropolished finish with rounded, deburred edges
• Perforated sidewalls to protect sharp edges and tips of instruments
• Perforation options: 2.5 mm or 22 swg
• Mesh trays: spotted mesh 5.5 x 5.5 x 1.2 mm where applicable
• Pull-up and stackable handles for secure handling and transport
• Available with single-frame, double-frame or detention-frame lids
• Stackable design for efficient storage and sterilizer loading
• Wide range of accessories: silicone mats, silicone inserts and tags

Product Attributes / Sizes
Model: YRCM-1051
Other available models and sizes: YRCM-2050 | 285 x 255 x 50 mm
YRCM-2070 | 485 x 255 x 70 mm
YRCM-2100 | 485 x 255 x 100 mm

Other Details
Surface finishes: Mirror, Luster, Satin, Brushed and Colored
Cutting method: Laser cut
All trays are stackable and compatible with automated washing and sterilization cycles

Technical Specifications

• Material: Stainless Steel 304 (medical grade), non-magnetic
• Perforation: 2.5 mm or 22 swg
• Mesh dimension (where applicable): 5.5 x 5.5 x 1.2 mm
• Finishes available: Mirror, Luster, Satin, Brushed, Colored
• Construction: Electropolished, rounded and deburred edges, laser cut
• Handles: Pull-up and stackable
• Lid options: Single frame, Double frame, Detention frame
• Compatibility: Designed for automatic washing and sterilization; rated for 1000+ sterilization cycles
