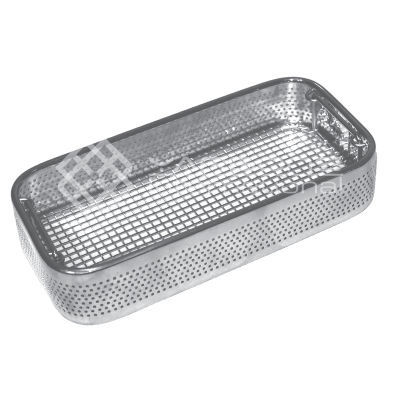

Stainless steel instrument tray YRCM-5050

Item Name
Perforated mesh tray, round corner

Item Description

• The wire base is designed for quick drying of instruments after washing and sterilization.
• Suitable for handling and storage of surgical and diagnostic instruments.
• Perforation pattern increases liquid and gas flow by approximately 30% for more effective washing and sterilization.

Features

• Manufactured in stainless steel 304 (medical grade), non-magnetic
• Electropolished finish
• Rounded, deburred edges
• Easy-to-lock perforated sidewalls to protect sharp instrument tips
• Perforation: 2.5 mm or 22 SWG
• Mesh specification (spotted): 5.5 x 5.5 x 1.2 mm
• Available in multiple sizes
• Pull-up, stackable handles
• Single-frame, double-frame and detention-frame lid options
• Compatible with automated washing and sterilization processes for all instrument types
• High durability: withstands 1000+ sterilization cycles without loss of form or function
• All trays are stackable
• Wide range of accessories available, including silicone mats, silicone inserts and tags

Sizes
YRCM-5050 | 255 x 120 x 50 mm
YRCM-5070 | 255 x 120 x 70 mm

Additional information
Surface finish options: mirror, luster, satin, brushed and colored. Cutting method: laser cut.

Technical specifications

• Material: Stainless steel 304 (medical grade), non-magnetic
• Perforation: 2.5 mm or 22 SWG
• Mesh specification (spotted): 5.5 x 5.5 x 1.2 mm
• Surface finish: mirror, luster, satin, brushed and colored
• Cutting: laser cut
• Handles: pull-up and stackable
• Stackable: yes, all trays are stackable
• Lid options: single-frame, double-frame, detention-frame
• Durability: withstands 1000+ sterilization cycles
