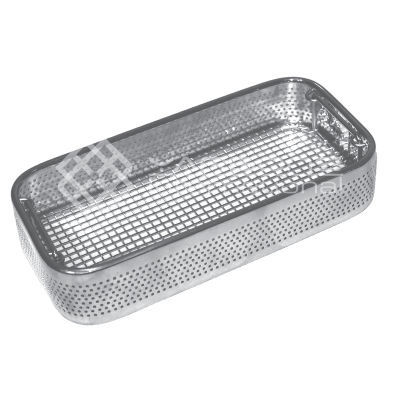

Dental instrument sterilization tray YRCM-5050

for surgical instrumentsfor instrumentssilicone

Item Name Perforated Mesh Tray (Round Corner)

Item Description Wire-base tray designed to accelerate drying of instruments after washing and sterilization. Suited for handling, storage and sterilization workflows in medical and dental facilities. Optimized perforation pattern increases liquid and gas flow for effective cleaning and drying.

Uses Intended for handling, storage and sterilization of surgical and dental instruments. Compatible with automatic washers and standard sterilization cycles used in hospitals, clinics and dental offices.

Features

• Manufactured in stainless steel 304, non-magnetic
• Electropolished finish
• Rounded, deburred edges for instrument protection
• Perforated sidewalls to protect sharp instrument tips and edges
• Perforation: 2.5 mm or 22 swg
• Mesh specification: spotted 5.5 x 5.5 x 1.2 mm
• Available in multiple sizes
• Pull-up, stackable handles
• Lid options: single frame, double frame, detention frame
• Compatible with automatic washing and sterilization for all instrument types
• Durability: designed to withstand 1000+ sterilization cycles without loss of shape or functionality
• All trays are stackable
• Accessories available: silicone mats, silicone inserts, tags

Sizes
YRCM-5050 | 255 x 120 x 50 mm
YRCM-5070 | 255 x 120 x 70 mm

Additional details Surface finish options: mirror, luster, satin, brushed, colored. Cutting method: laser cut. All trays stackable.

Technical specifications

• Model designation: YRCM-5050 (also available as YRCM-5070)
• Dimensions (YRCM-5050): 255 x 120 x 50 mm
• Material: Stainless steel 304, non-magnetic
• Perforation: 2.5 mm or 22 swg
• Mesh: spotted 5.5 x 5.5 x 1.2 mm
• Surface finishes: mirror, luster, satin, brushed, colored
• Cutting: laser cut
• Handles: pull-up, stackable
• Lid options: single frame, double frame, detention frame
• Compatibility: suitable for automatic washing and sterilization; designed to protect sharp instrument edges
• Durability: rated for 1000+ sterilization cycles
• Accessories: silicone mats, silicone inserts, tags
