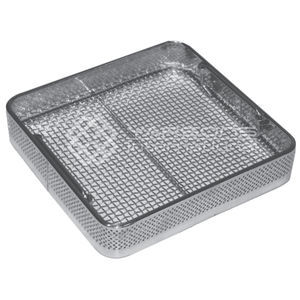

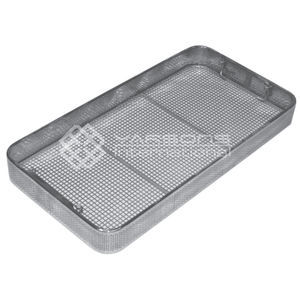

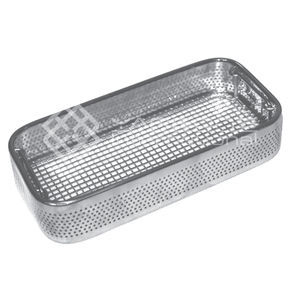

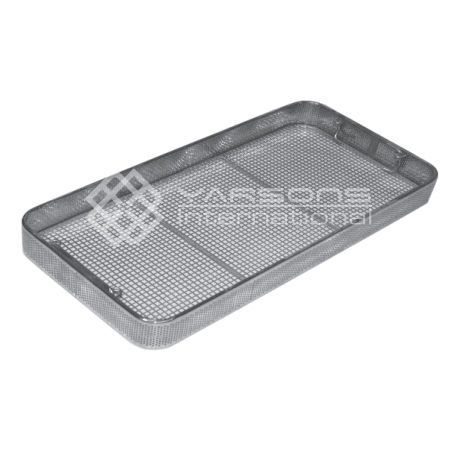

Surgical instrument sterilization tray YRCM-3 series

for instrumentsperforatedstainless steel

Item Name: Perforated Mesh Tray, Round Corner

Item Description:
The wire-base mesh tray is designed for rapid drying of instruments after washing and sterilization. Suitable for handling, storage and sterilization workflows in medical environments. Specific perforation pattern increases liquid and gas flow by approximately 30%, improving cleaning and sterilization effectiveness.

Features:

• Manufactured from stainless steel 304 (medical grade), non-magnetic
• Electropolished finish with rounded and deburred edges
• Perforated sidewalls to protect sharp instrument tips and edges
• Perforation options: 2.5 mm or 22 SWG; mesh: spot 5.5 x 5.5 x 1.2 mm
• Pull-up, stackable handles for secure transport and storage

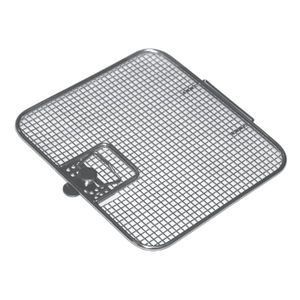

• Available lids: single frame, double frame, detention frame
• Designed to withstand 1000+ sterilization cycles without loss of shape or functionality
• Compatible with automatic washers and sterilizers
• Wide range of accessories: silicone mats, silicone inserts, tags

Sizes / Available SKUs:
YRCM-3050 | 405 x 255 x 50 mm
YRCM-3070 | 405 x 255 x 70 mm
YRCM-3100 | 405 x 255 x 100 mm

Additional product attributes:
Material: Stainless Steel 304 (medical grade).
Surface finish options: Mirror, luster, satin, brushed, colored.
Cutting method: Laser cut.
Stackable: All trays are stackable.

Technical specifications:

• Model examples: YRCM-3050, YRCM-3070, YRCM-3100
• Dimensions (examples): 405 x 255 x 50 mm; 405 x 255 x 70 mm; 405 x 255 x 100 mm
• Material: Stainless steel 304, non-magnetic
• Surface finish options: mirror, luster, satin, brushed, colored
• Perforation: 2.5 mm or 22 SWG; mesh 5.5 x 5.5 x 1.2 mm (spot)
• Handles: Pull-up and stackable handles
• Lid/frame options: Single frame, double frame, detention frame lids available
• Durability: Designed to withstand 1000+ sterilization cycles
• Compatibility: Suitable for automatic washing and sterilization processes
• Accessories available: silicone mats, silicone inserts, tags
• Manufacturing: Laser cut, electropolished, rounded and deburred edges
