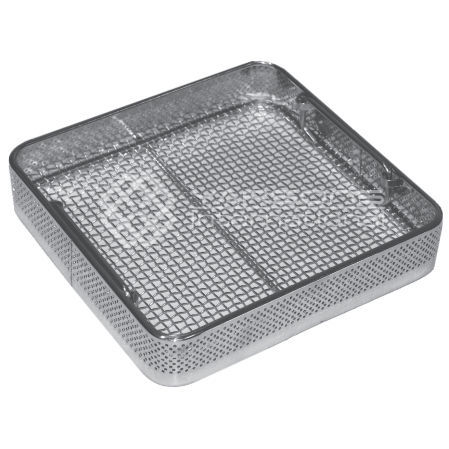

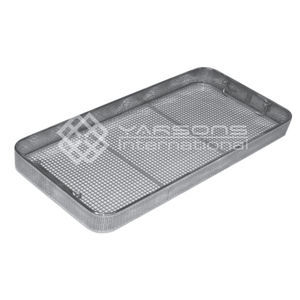

Surgical instrument sterilization tray YRCM-4 series

for instrumentsstainless steelperforated

Item Name
Perforated Mesh Instrument Tray, Round Corner — YRCM-4050

Item Description
The wire-base tray is designed to enable rapid drying of surgical and medical instruments after washing and sterilization. Its perforated construction increases liquid and gas flow to support efficient cleaning and sterilization processes while protecting instrument tips and edges.

Uses
Suitable for handling, storage and sterilization cycles of medical and surgical instruments; facilitates fast drying after automated washing and sterilization.

Features

• Manufactured in stainless steel 304 (medical grade), non-magnetic
• Electropolished finish option available
• Rounded, deburred edges for user safety
• Easy-to-lock perforated sidewalls to protect sharp instrument tips and edges
• Perforation options: 2.5 mm or 22 swg
• Spotted mesh option: 5.5 x 5.5 x 1.2 mm
• Pull-up, stackable handles
• Available lid options: single frame, double frame, detention frame
• Designed for compatibility with automatic washing and sterilization equipment
• Durability: withstands 1000+ sterilization cycles without loss of shape or function
• All trays stackable
• Wide range of accessories available: silicone mats, silicone inserts, tags

Available sizes (product variants)
YRCM-4050 | 255 x 245 x 50 mm
YRCM-4070 | 255 x 245 x 70 mm
YRCM-4100 | 255 x 245 x 100 mm

Other product attributes
Surface finish: mirror, luster, satin, brushed and colored
Cutting: laser cut

Technical specifications

• Material: Stainless steel 304 (medical grade), non-magnetic
• Perforation: 2.5 mm or 22 swg
• Mesh (spotted) dimension: 5.5 x 5.5 x 1.2 mm
• Dimensions (examples): YRCM-4050 = 255 x 245 x 50 mm; YRCM-4070 = 255 x 245 x 70 mm; YRCM-4100 = 255 x 245 x 100 mm
• Surface finish options: mirror, luster, satin, brushed, colored
• Cutting method: laser cut
• Sidewall: perforated to protect instrument tips/edges
• Handles: pull-up, stackable
• Lid options: single frame, double frame, detention frame
• Compatibility: suitable for automatic washing and sterilization processes
• Durability: rated for 1000+ sterilization cycles
• Stackable: yes
• Accessories available: silicone mats, silicone inserts, tags
