Signal encoder KMT36H

Product overview

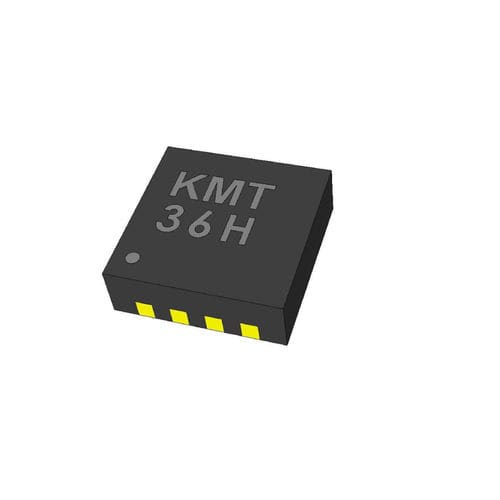

The G-MRCO-021 is an active MEAS family 360° AMR magnetic angle sensor (TE internal description: KMT36H TDFN ROHS). Supplied in an 8‑lead TDFN 2.5 x 2.5 package, it provides full 0–360° angular measurement for integration into industrial and embedded motion systems.

Identifiers

• TE Internal #: G-MRCO-021
• TE Internal Description: KMT36H TDFN ROHS
• Product family / series: MEAS, MEAS KMT
• Status: Active

Key features

• Product type: Magnetic angle sensor (position sensing)
• Sensing technology: AMR (anisotropic magnetoresistance)
• Measurement range: 0–360° (full rotation)
• Typical signal amplitude: 11 mV/V
• Typical operating voltage: 5 V
• Typical average current: 1.6 mA
• Operating temperature range: -40 to 125 °C ( -40 to 257 °F )
• Package: 8‑lead TDFN 2.5 x 2.5 — surface-mount

Documents (available on manufacturer site)

• Customer Drawing: ENG_CD_C-G-MRCO-021_1.pdf
• Data Sheet: ENG_DS_KMT36H_A3.pdf

Technical specifications

• Model / designation: KMT36H
• Package type: TDFN 2.5 x 2.5, 8 leads
• Sensing range: 0–360°
• Typical signal amplitude: 11 mV/V
• Typical operating voltage: 5 V
• Typical average current: 1.6 mA
• Operating temperature: -40 to 125 °C (-40 to 257 °F)
• Compliance: RoHS (as per TE internal description)
