Pressure transducer MEAS 85

analog

Product Summary

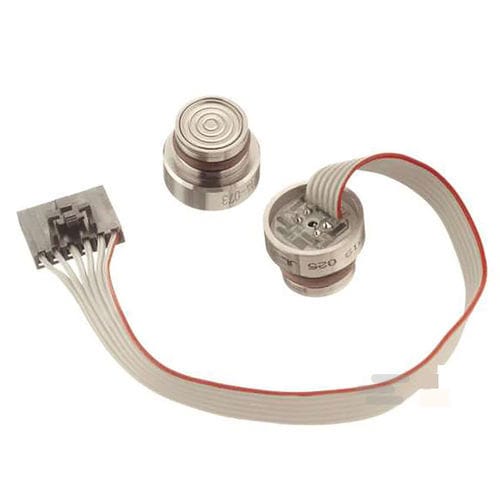

The 85 Flush Mount is a compact, media-compatible piezoresistive silicon pressure sensor housed in 316L stainless steel. Silicon oil transfers pressure from the 316L diaphragm to the piezoresistive element. A ceramic substrate with laser-trimmed resistors provides temperature compensation, offset correction and an optional gain-set resistor for ±1% span interchangeability.

Benefits

• O-ring flush mount for direct process contact
• 0 °C to 70 °C compensated temperature range
• ±0.1% pressure non-linearity
• ±0.75% temperature performance
• ±1.0% interchangeable span via gain-set resistor
• Solid-state, media-compatible design

Product Type Features

• Pressure sensor type: mV output pressure sensors
• Pressure types available: Absolute, Gauge
• Sensor package options: Flush mount (O-ring), Threaded process fittings, Weldable

Configuration Features

• Electrical connection: Cable with connector or 4-pin connector

Electrical Characteristics

• Supply current: 1.5 mA
• Output signal: 100 mV

Dimensions

• Product diameter (mm): 15.85 | 22.09
• Product diameter (in): 0.624 | 0.87
• Product height (mm): 9.3 | 9.9
• Product height (in): 0.366 | 0.39

Usage Conditions

• Pressure ranges (psi): 15 | 50 | 100
• Operating temperature range: -40 to 125 °C [ -40 to 257 °F ]

Operation / Application

• Proof pressure: 3× full scale
• Output signal details: 100 mV nominal for specified ranges

Other

• Sensor options: No tube
• Non-linearity: ±0.1%
• Port fitting: Flush mount (O-ring)

Product Variants (table)
15 PSIG FLUSH MOUNT PRESSURE SENSOR | TE Part #: 85-015G-FC | Pressure Type: Gauge | Sensor Package: Threaded Process Fittings, Weldable
100 PSIA FLUSH MOUNT PRESSURE SENSOR | TE Part #: 85-100A-FC | Pressure Type: Absolute | Sensor Package: Threaded Process Fittings, Weldable

Technical specifications

• Model / Series: 85 Flush Mount (MEAS 85 series)
• Output: 100 mV (mV output pressure sensor)
• Pressure ranges available: 15, 50, 100 psi
• Pressure types: Absolute and Gauge
• Operating temperature: -40 to 125 °C (-40 to 257 °F)
• Supply current: 1.5 mA
• Non-linearity: ±0.1%
• Temperature performance: ±0.75%
• Interchangeable span: ±1.0% (via gain-set resistor)
• Proof pressure: 3× full scale
• Housing / diaphragm material: 316L stainless steel
• Sensing element: piezoresistive silicon; silicon-oil pressure transfer; ceramic substrate with laser-trimmed resistors
• Electrical connections: Cable with connector or 4-pin connector
• Typical package: Flush mount (O-ring); also available with threaded or weldable fittings
• Reference: TE catalog CAT-MIPS0014
