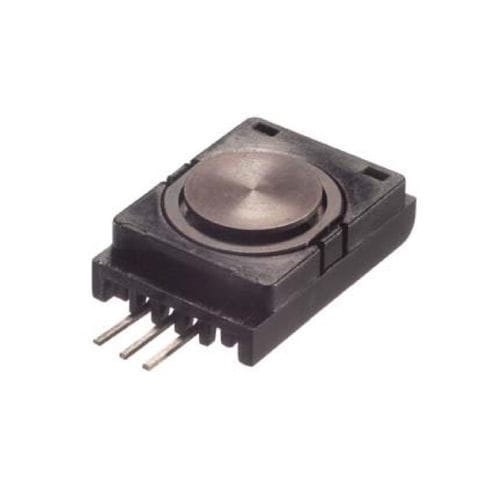

Force transducer MEAS FS20

analog

Product name FS2050 COMPRESSION LC1500 GRAM (TE internal: FS2050-0000-1500-G)

Overview Low compression load cell designed for OEM and industrial measurement applications. Part of the MEAS FS20 series. TE internal reference FS2050-0000-1500-G. Product status: Active. Item is noted as special order — noncancelable and nonreturnable.

Key Features

• Force sensor type: OEM compression load cell
• Force direction: Compression
• Full scale range: 15 N
• Output signal details: 1 – 4 V
• Supply voltage range: 5 VDC
• Operating temperature range: -40 – 85 °C (-40 – 185 °F)
• Accuracy: ±1% of full scale
• Zero shift (CTR): ±0.05 %FS/°C
• Sensitivity shift: ±0.05 %FS/°C

Related series / Family MEAS; MEAS FS20 series

Documents available

• 3D customer view models (CAD)
• Datasheet (FS20 series)

Technical specifications

• TE internal number: FS2050-0000-1500-G
• TE internal description: FS2050 COMPRESSION LC1500 GRAM
• Series: MEAS FS20
• Brand: MEAS
• Force sensor type: OEM compression load cell
• Force direction: Compression
• Full scale range: 15 N
• Output signal: 1–4 V
• Supply voltage: 5 VDC
• Operating temperature range: -40 – 85 °C (-40 – 185 °F)
• Accuracy: ±1 %FS
• Zero shift (CTR): ±0.05 %FS/°C
• Sensitivity shift: ±0.05 %FS/°C

Ordering & availability

• Packaging: unit
• Minimum order quantity: 1
• Price: contact supplier
• Note: Special order — noncancelable and nonreturnable
